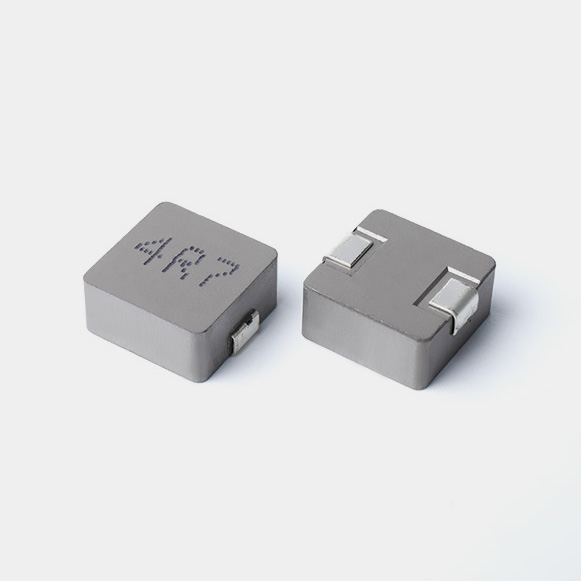

SC1367N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1367
L*W*H 14.2x12.8x6.7mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1367N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC1367N-4R7M-R-S4.7 ±20%82416100KHz/0.25V1.pngSC1367N-4R7M-R-S.PDF


Package：500pcs/r




|   SC1367N Molded Power Inductor Size


A：14.2MAX mmB：12.8±0.5 mm
C：6.7MAX mmD：2.5typ mm
E：3.0typ mmF：14.5typ mm
G：8.0typ mmI：5.0typ mm






|   SC1367N Molded Power Inductor Application

SC1367N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
