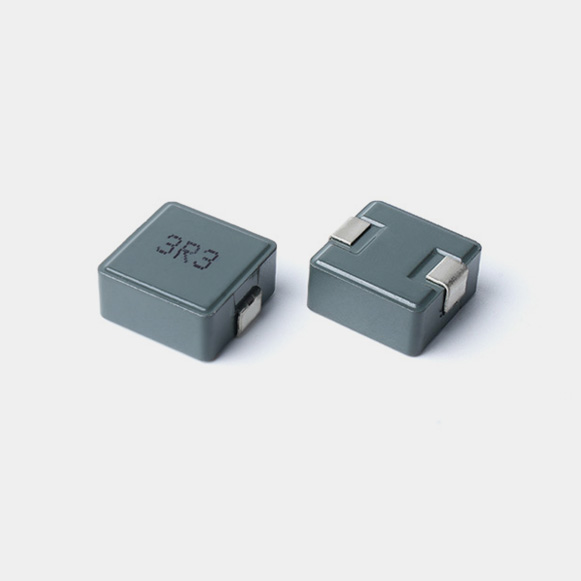

SC1365B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC1365B-R22M-R-S	0.22	0.8	0.86	80	46	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-R33M-R-S	0.33	0.8	0.9	80	46	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-R47M-R-S	0.47	1.2	1.5	75	43	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-R68M-R-S	0.68	1.5	1.7	70	42	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-R82M-R-S	0.82	1.7	1.9	50	30	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-1R0M-R-S	1	2.0	2.2	50	30	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-1R5M-R-S	1.5	2.8	3.0	45	27	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-2R2M-R-S	2.2	3.5	4.2	40	22	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-3R3M-R-S	3.3	5.5	9.2	30	18	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-4R7M-R-S	4.7	11.5	9.5	25	16	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-5R6M-R-S	5.6	9.5	10	20	13.5	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-6R8M-R-S	6.8	10.5	13.5	20	11	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-8R2M-R-S	8.2	12	15	16	10	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-100M-R-S	10	17.5	20	9.2	9	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-150M-R-S	15	26.2	28.2	8.5	7.2	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-220M-R-S	22	45	48	7.5	5.0	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-330M-R-S	33	39	70	5.4	5.0	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-470M-R-S	47	55	104	5.2	4.0	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-680M-R-S	68	135	140	4.7	3.0	100KHz/0.1V	SC1365B-SERIES.PDF
SC1365B-101M-R-S	100	188	198	3.5	3.0	100KHz/0.1V	SC1365B-SERIES.PDF

Package：500pcs/r

|   SC1365B Molded Power Inductor Size

|   SC1365B Molded Power Inductor Application

SC1365B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
