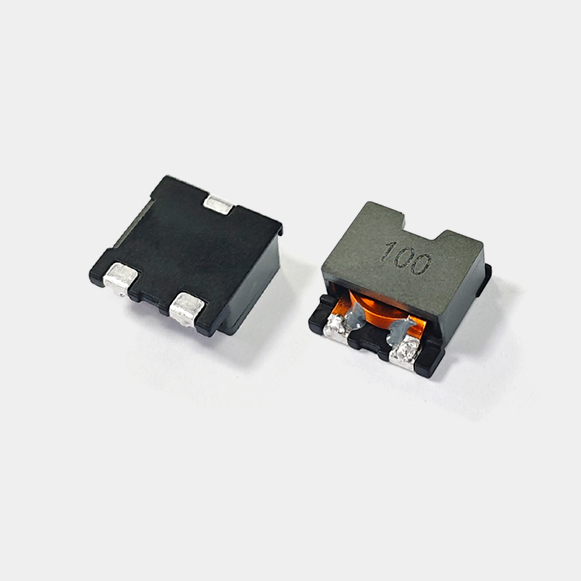

SFER1360 High Current Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	自谐频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	SRF	Download
	( mH )	( Ω )		( A )	( A )		( MHz )
	TYP	TYP	MAX	MAX	MAX		TYP
SFER1360-R33M-R-S	0.33	0.75	0.85	56	16.9	100KHz/0.1V	200	SFER1360-SERIES.PDF
SFER1360-R65M-R-S	0.65	0.75	0.85	32	16.9	100KHz/0.1V	160	SFER1360-SERIES.PDF
SFER1360-1R0M-R-S	1	2.38	2.6	33.5	13	100KHz/0.1V	75	SFER1360-SERIES.PDF
SFER1360-1R8M-R-S	1.8	2.38	2.6	20	13	100KHz/0.1V	50	SFER1360-SERIES.PDF
SFER1360-2R7M-R-S	2.7	2.38	2.6	14	13	100KHz/0.1V	42	SFER1360-SERIES.PDF
SFER1360-4R0M-R-S	4	5.15	6	13	9.4	100KHz/0.1V	34	SFER1360-SERIES.PDF
SFER1360-4R7M-R-S	4.7	5.15	6	12	9.4	100KHz/0.1V	32	SFER1360-SERIES.PDF
SFER1360-6R0M-R-S	6	5.15	6	9.5	9.4	100KHz/0.1V	28	SFER1360-SERIES.PDF
SFER1360-8R0M-R-S	8	9.75	10.8	9	7.6	100KHz/0.1V	26	SFER1360-SERIES.PDF
SFER1360-100M-R-S	10	9.75	10.8	7.5	7.6	100KHz/0.1V	24	SFER1360-SERIES.PDF

Package：500pcs/r

|   SFER1360 High Current Inductor Size

|   SFER1360 High Current Inductor Application

SFER1360 High Current Inductor is widely used in consumer electronics, small household appliances, power converters, electric vehicles, wireless communication, switching power supplies, etc.
