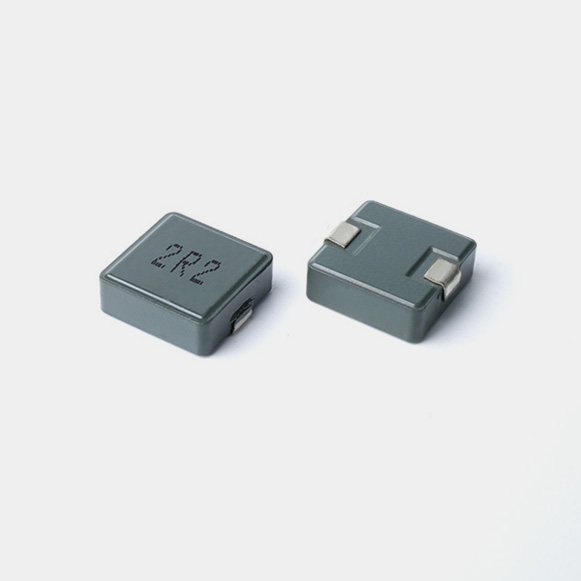

SC1350B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC1350B-R33M-R-S	0.33	1.1	1.2	80	42	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-R47M-R-S	0.47	1.4	1.5	65	38	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-R68M-R-S	0.68	1.8	2.2	60	32	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-1R0M-R-S	1	2.7	2.9	50	29	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-1R5M-R-S	1.5	3.8	4.1	48	23	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-2R2M-R-S	2.2	4.0	4.2	30	15	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-3R3M-R-S	3.3	5.5	9.2	19.5	14	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-4R7M-R-S	4.7	14	15	18	9.5	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-6R8M-R-S	6.8	16.5	18.5	16	8.8	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-8R2M-R-S	8.2	17	20	14	8.5	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-100M-R-S	10	20	22	10.5	8.1	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-150M-R-S	15	33	35	6.8	5.2	100KHz/0.1V	SC1350B-SERIES.PDF
SC1350B-220M-R-S	22	55	58	5.7	5.0	100KHz/0.1V	SC1350B-SERIES.PDF

Package：500pcs/r

|   SC1350B Molded Power Inductor Size

|   SC1350B Molded Power Inductor Application

SC1350B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
