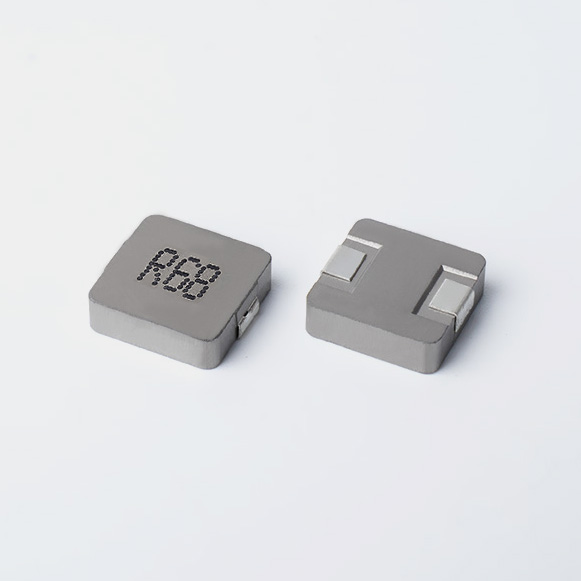

SC1335N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1335
L*W*H 13.8x13x3.5mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1335N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.



型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC1335N-R68M-R-S0.68 ±20%2.54920100KHz/0.1V1.pngSC1335N-R68M-R-S.PDF


Package：500pcs/r




|   SC1335N Molded Power Inductor Size


A：13.8MAX mmB：13MAX mm
C：3.5MAX mmD：2.2±0.5 mm
E：3.0±0.5 mmF：13.6typ mm
G：5.4typ mmI：4.1typ mm







|   SC1335N Molded Power Inductor Application

SC1335N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
