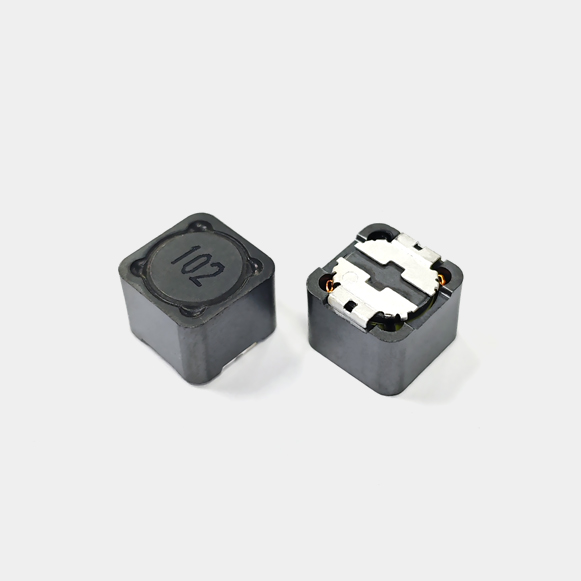

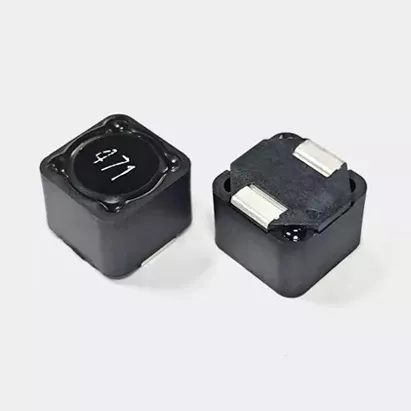

SFRH129S Power Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	MAX	MAX
SFRH129S-100M-R-S-LF	10	23	12.5	7.6	100KHz/0.1V	SFRH129S-SERIES.PDF
SFRH129S-470M-R-S-LF	47	100	5.8	4.2	100KHz/0.1V	SFRH129S-SERIES.PDF
SFRH129S-101K-R-S-LF	100	220	4	2.8	100KHz/0.1V	SFRH129S-SERIES.PDF
SFRH129S-331M-R-S-LF	330	430	1.7	1.1	100KHz/0.1V	SFRH129S-SERIES.PDF
SFRH129S-471K-R-S-LF	470	510	1.8	1.1	100KHz/0.1V	SFRH129S-SERIES.PDF
SFRH129S-102K-R-S-LF	1000	1530	1.3	1	100KHz/0.1V	SFRH129S-SERIES.PDF

Package：250pcs/r

|   SFRH129S Power Inductor Size

|   SFRH129S Power Inductor Application

SFRH129 Power Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
