EPC128 High Current Inductor

share
WeChat
QQ
copy Link
Technical highlights of the EPC128 series SMT high current inductors (produced by Fenfa Electronics):
Designed for small-sized high current circuit environments
Can be attached with copper foil high-temperature tape, with a withstand voltage up to 200V
Small inductance, high current
Size Code 128
L*W*H 13.8x14x9.5mm
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   EPC128 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流耐压 测试绝缘阻抗下载
NumLDCRIsatIrmsHI-POTIRDownload

( μH ) at 100KHz/1V( mΩ )( A )( A )
AC 50/60HzDC

TYPMAXTYPMAX


EPC128-R47K-R-S10 ±15%1.23030200V/2mA/3S500V


Package：500pcs/tray

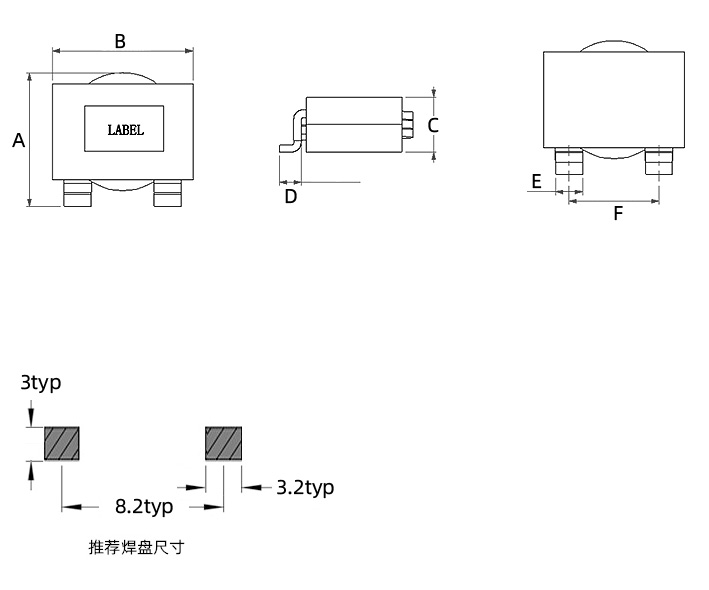

|   EPC128 High Current Inductor Size

EPC128 High Current Inductor L*W*H：13.8*14*9.5mm


A：13.8MAX mmB：14MAX mm
C：9.5MAX mmD：2.0±0.5 mm
E：2.4±0..1 mmF：8.2±0.5 mm







|   EPC128 High Current Inductor Application

EPC128 High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
