FCM1211 Common Mode Inductor

share
WeChat
QQ
copy Link

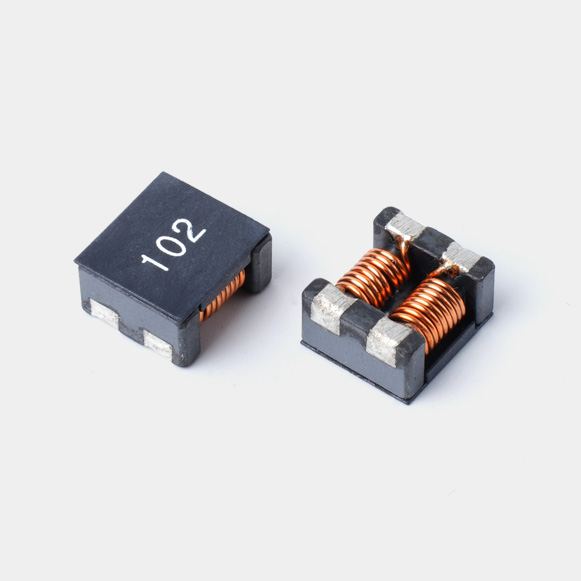

Common mode inductors, also known as c, have two sets of windings and can be wound in a split or parallel manner. The FCM1211 common mode inductor is a split-wound type. It plays a role in suppressing electromagnetic interference (EMI) and filtering in power circuits.
Size Code 1211
L*W*H 12.5x10.8x6.5mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   FCM1211 Common Mode Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号阻抗直流电阻额定电流绝缘电阻工作电压下载
NumZDCRIDCIRRated Voltage
Download

( Ω )at100MHz( mΩ )( A )
( mΩ )( V )


MINTYPMAXMAXMINMAX
FCM1211-800-R-S80230210101251.pngFCM1211-SERIES.PDF
FCM1211-231-R-S-LF20023048101251.pngFCM1211-231-R-S-LF.PDF
FCM1211-501-R-S-LF30050068101251.pngFCM1211-231-R-S-LF.PDF
FCM1211-701-R-S50070068101251.pngFCM1211-SERIES.PDF
FCM1211-801-R-S60080088101251.pngFCM1211-SERIES.PDF
FCM1211-102-R-S7501000146101251.pngFCM1211-SERIES.PDF
FCM1211-222-R-S22002500351.8101251.pngFCM1211-SERIES.PDF
FCM1211-272-R-S23002700501.5101251.pngFCM1211-SERIES.PDF


Package：500pcs/r




|   FCM1211 Common Mode Inductor Size


A：12.5±0.5 mmB：10.8±0.5 mm
C：6.5MAX mmD：5.2±0.3 mm
E：6.8±0.3 mmF：2.8typ mm
G：2.8typ mm
a：3.9ref mmb：6.1ref mm
c：3.1ref mmd：2.3ref mm







|   FCM1211 Common Mode Inductor Winding







|   FCM1211 Common Mode Inductor Application

FCM1211 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
