PK2W1112 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 1112
L*W*H 13x15x4mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W1112 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH )( mΩ )( A )( A )

TYPMAXMAXTYP
PK2W1112-220K-B-S-LF22 ±10%4564
1.pngPK2W1112-SERIES.PDF


Package：90pcs/tray

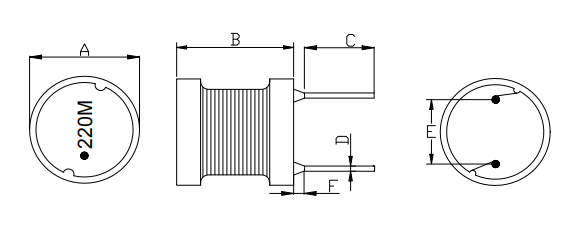

|   PK2W1112 Drum Core Inductor Size


A：13MAX mmB：15.5MAX mm
C：4.0±0.5 mmD：0.6±0.1 mm
E：5.0±0.5 mmF：2.0MAX mm






|   PK2W1112 Drum Core Inductor Application

PK2W1112 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
