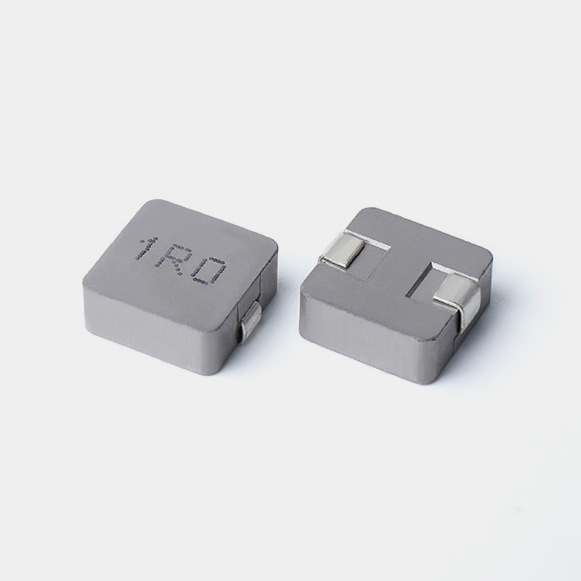

SC1050N Molded Power Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	TYP	TYP
SC1050N-1R0M-R-S	1 ±20%	2.2	27	25	100KHz/0.25V	SC1050N-1R0M-R-S.PDF
SC1050N-1R5M-R-S	1.5 ±20%	5.8	28	22	100KHz/1V	SC1050N-1R5M-R-S.PDF
SC1050N-4R7M-R-S	4.7 ±20%	15	14	9	100KHz/1V	SC1050N-4R7M-R-S.PDF
SC1050N-100M-R-S	10 ±20%	30	10	8	100KHz/1V	SC1050N-100M-R-S.PDF
SC1050N-220M-R-S	22 ±20%	60	7	5	100KHz/0.1V	SC1050N-220M-R-S.PDF
SC1050N-330M-R-S	33 ±20%	95	5	3	100KHz/0.1V	SC1050N-330M-R-S.PDF
SC1050N-101M-R-S	100 ±20%	370	2.5	2	100KHz/0.1V	SC1050N-101M-R-S.PDF

Package：800pcs/r

|   SC1050N Molded Power Inductor Size

|   SC1050N Molded Power Inductor Application

SC1050N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
