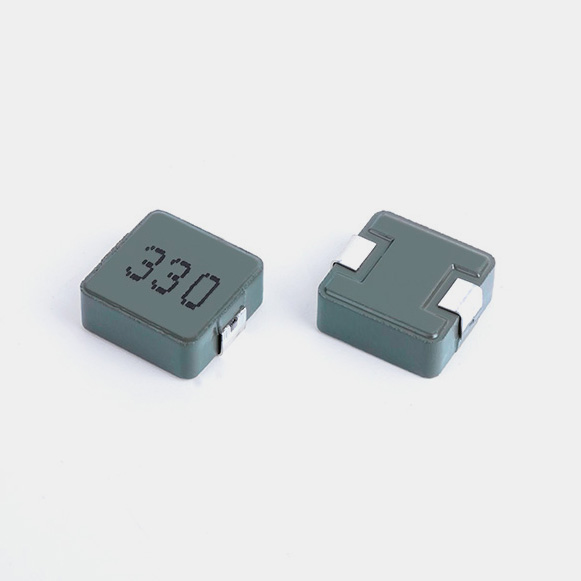

SC1050B Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1050
L*W*H 11.5x10.4x5mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1050B Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC1050B-100M-R-S10 ±20%28137100KHz/0.25V1.pngSC1050B-100M-R-S.PDF
SC1050B-220M-R-S22 ±20%69136100KHz/0.25V1.pngSC1050B-220M-R-S.PDF
SC1050B-330M-R-S33 ±20%104107.5100KHz/1V1.pngSC1050B-330M-R-S.PDF


Package：500pcs/r




|   SC1050B Molded Power Inductor Size


A：11.5MAX mmB：10.4MAX mm
C：5.0MAX mmD：2.0±0.5 mm
E：3.0±0.5 mmF：13.6ref mm
G：5.4ref mmI：4.1ref mm






|   SC1050B Molded Power Inductor Application

SC1050B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
