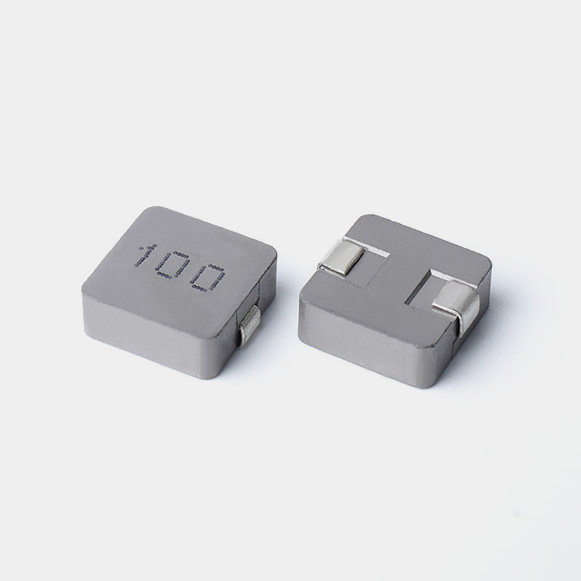

SC1045N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1045
L*W*H 11.5x10x4.5mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1045N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC1045N-470M-R-S47 ±20%13552100KHz/0.25V1.pngSC1045N-470M-R-S.PDF
SC1045N-101M-R-S100 ±20%3302.52100KHz/0.1V1.pngSC1045N-101M-R-S.PDF


Package：800pcs/r




|   SC1045N Molded Power Inductor Size


A：11.5MAX mmB：10±0.3 mm
C：4.5MAX mmD：2.0±0.5 mm
E：3.0±0.5 mmF：13.6 mm
G：5.4 mmI：4.1 mm







|   SC1045N Molded Power Inductor Application

SC1045N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
