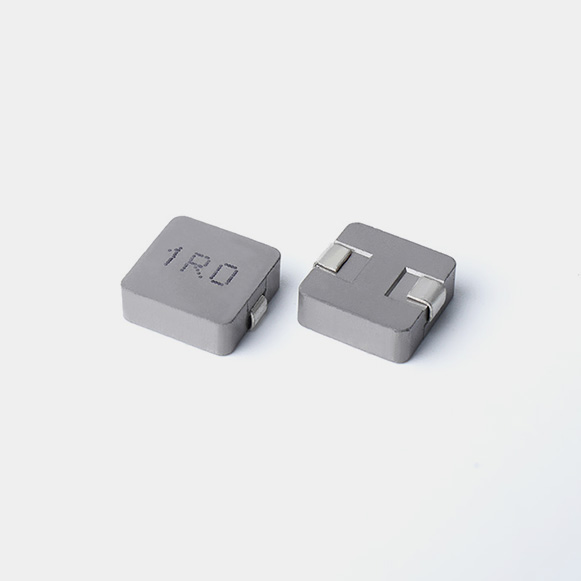

SC1040N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC1040N-R15M-R-S	0.15	0.6	0.65	75	40	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R22M-R-S	0.22	0.73	1	68	35	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R33M-R-S	0.33	1	1.1	55	34	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R36M-R-S	0.36	1.1	1.2	50	33	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R47M-R-S	0.47	1.3	1.5	42	32	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R56M-R-S	0.56	1.5	1.8	40	31	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R68M-R-S	0.68	1.8	2.7	39	30	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-R88M-R-S	0.88	2.1	2.9	38	20	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-1R0M-R-S	1	3.4	3.5	28	18	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-1R2M-R-S	1.2	3.2	4	22	16	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-1R5M-R-S	1.5	3.8	5	26	16	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-2R2M-R-S	2.2	6.4	7	16	12	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-3R3M-R-S	3.3	9.7	12	16	10	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-4R7M-R-S	4.7	15.3	16	14	9	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-5R6M-R-S	5.6	21	23	11.5	7.2	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-6R8M-R-S	6.8	20.8	22	12	8.5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-8R2M-R-S	8.2	24.5	26.5	8	6.2	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-100M-R-S	10	30.3	33	9	7.5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-150M-R-S	15	46.5	49	5.4	5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-220M-R-S	22	62	66	6	5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-330M-R-S	33	130	137	4.5	3	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-470M-R-S	47	133	140	4	3.5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-680M-R-S	68	170	195	3.5	2.5	100KHz/0.1V	SC1040N-SERIES.PDF
SC1040N-101M-R-S	100	299	320	3	1.8	100KHz/0.1V	SC1040N-SERIES.PDF

Package：800pcs/r

|   SC1040N Molded Power Inductor Size

|   SC1040N Molded Power Inductor Application

SC1040N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
