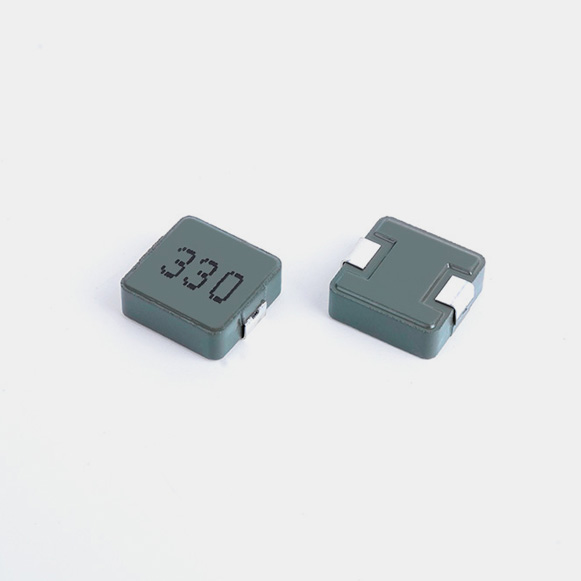

SC1040B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC1040B-R22M-R-S	0.22	0.73	1	68	35	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R33M-R-S	0.33	1	1.1	55	34	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R36M-R-S	0.36	1.1	1.2	50	33	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R47M-R-S	0.47	1.3	1.5	42	32	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R56M-R-S	0.56	1.5	1.8	40	31	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R68M-R-S	0.68	1.8	2.7	39	30	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-R88M-R-S	0.88	2.1	2.9	38	20.8	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-1R0M-R-S	1	2.8	3.3	26	18	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-1R2M-R-S	1.2	3.2	4	22	17.6	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-1R5M-R-S	1.5	3.9	4.2	18	14.4	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-2R2M-R-S	2.2	6.4	7	16	12.5	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-3R3M-R-S	3.3	11.4	12	13.5	10.5	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-4R7M-R-S	4.7	19	20	13	10	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-5R6M-R-S	5.6	21	23	11.5	9.0	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-6R8M-R-S	6.8	22.5	24.5	9.5	7.5	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-8R2M-R-S	8.2	24.5	26.5	8.0	6.4	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-100M-R-S	10	31	33	7.2	5.8	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-150M-R-S	15	46.5	49	5.4	5.0	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-220M-R-S	22	65	68	5.0	4.0	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-330M-R-S	33	130	137	4.5	3.0	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-470M-R-S	47	168	188	3.2	3.0	100KHz/0.1V	SC1040B-SERIES.PDF
SC1040B-101M-R-S	100	330	370	2.0	1.8	100KHz/0.1V	SC1040B-SERIES.PDF

Package：800pcs/r

|   SC1040B Molded Power Inductor Size

|   SC1040B Molded Power Inductor Application

SC1040B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
