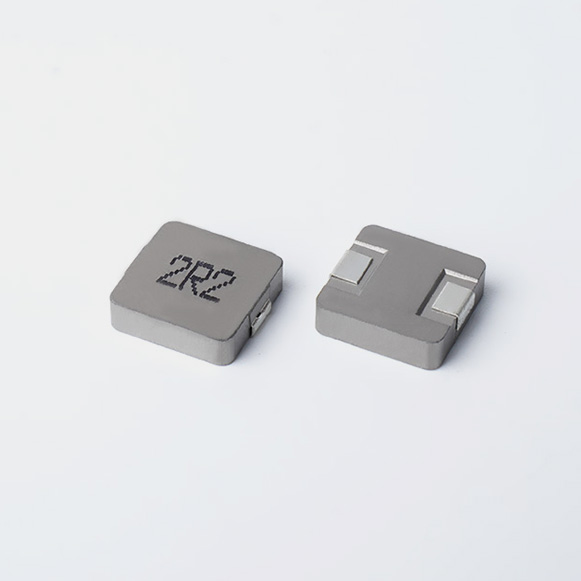

SC1030N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1030
L*W*H 11.15x10x3mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1030N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )



MAXTYPTYP

SC1030N-R36M-R-S0.36 ±20%1.62823100KHz/0.25V1.pngSC1030N-R36M-R-S.PDF
SC1030N-1R5M-R-S1.5 ±20%12168100KHz/1V1.pngSC1030N-1R5M-R-S.PDF
SC1030N-2R2M-R-S2.2 ±20%15147100KHz/1V1.pngSC1030N-2R2M-R-S.PDF
SC1030N-100M-R-S10 ±20%557.55100KHz/0.1V1.pngSC1030N-100M-R-S.PDF


Package：1500pcs/r




|   SC1030N Molded Power Inductor Size


A：11.5MAX mmB：10.0±0.3 mm
C：3.0MAX mmD：3.0±0.5 mm
E：2.0±0.5 mmF：13.6typ mm
G：5.4typ mmI：4.1typ mm







|   SC1030N Molded Power Inductor Application

SC1030N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
