PK2W1016 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 1016
L*W*H 12x18x14mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W1016 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流测试频率下载
NumLDCRIDCTEST FREQ.Download

( mH )( Ω )( A )


TYPMAXMAX

PK2W1016-552K-B-S-LF5.5 ±10%5.20.4100KHz/0.25V
1.pngPK2W1016-SERIES.PDF
PK2W1016-151J-B-S-LF150 ±5%0.1872.41KHz/0.3V1.pngPK2W1016-SERIES.PDF
PK2W1016-331K-B-S-LF330±10%3941.621KHz/0.3V1.pngPK2W1016-SERIES.PDF
PK2W1016-392K-B-S-LF3900 ±10%60.421KHz/0.3V1.pngPK2W1016-SERIES.PDF


Package：130pcs/Tray

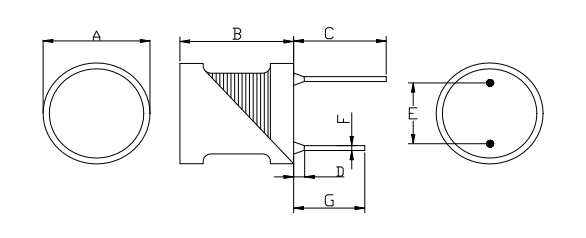

|   PK2W1016 Drum Core Inductor Size


A：12MAX mmB：18MAX mm
C：14±2.0 mmD：2.0MAX mm
E：6.0±0.5 mmF：0.7±0.1 mm
G:   12±2.0 mm






|   PK2W1016 Drum Core Inductor Application

PK2W1016 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
