PK2W1012 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 1012
L*W*H 11.5x13.5x20mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W1012 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流测试频率下载
NumLDCRIDCTEST FREQ.Download

( μH )( mΩ )( A )


TYPMAXMAX

PK2W1012-680K-B-S-LF68 ±10%13021KHz/0.25V
1.pngPK2W1012-SERIES.PDF
PK2W1012-152K-B-S-LF1500±10%20500.610KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-182K-B-S-LF1800 ±10%23800.5510KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-202K-B-S-LF2000 ±10%29500.510KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-302K-B-S-LF3000 ±10%37500.410KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-332J-B-S-LF3300 ±5%49000.281KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-472K-B-S-LF4700 ±10%165000.21KHz/0.25V1.pngPK2W1012-SERIES.PDF
PK2W1012-103K-B-S-LF10000 ±10%130000.151KHz/0.25V1.pngPK2W1012-SERIES.PDF


Package：130pcs/Tray

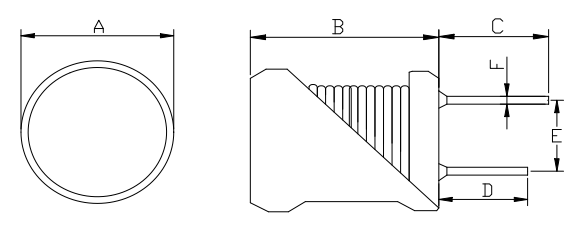

|   PK2W1012 Drum Core Inductor Size


A：11.5MAX mmB：13.5MAX mm
C：20±2.0 mmD：16±2.0 mm
E：5.0±0.5 mmF：0.8±0.1 mm






|   PK2W1012 Drum Core Inductor Application

PK2W1012 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
