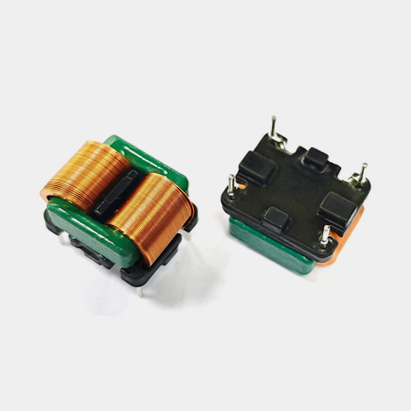

SQ1010 Common Mode Inductor-Horizontal
share
The SQ1010 common-mode inductor, as a crucial electronic component specifically designed to address the complex electromagnetic environment of power supplies and LED lighting, is wound with flat wires. Compared to traditional circular wires, it has a higher current density and a more uniform electric field distribution.
Detail
| SQ1010 Common Mode Inductor-Horizontal Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 漏感 | 耐压 | 直流电阻 | 线径 | 下载 |
| Num | L | Leak L | HI-POT | DCR | WIRE SIZE | Download |
| ( mH ) at 1KHz/0.25V | ( mH ) at 1KHz/0.25V | ( V ) | ( mΩ ) | ( mm ) | ||
| MIN | MAX | AC50Hz, 3mA, 3sec | MAX | |||
| SQ1010-1.4mH | 1.4 | 0.3 | 1500 | 100 | 0.15*1 |  |
Package：135pcs/tray

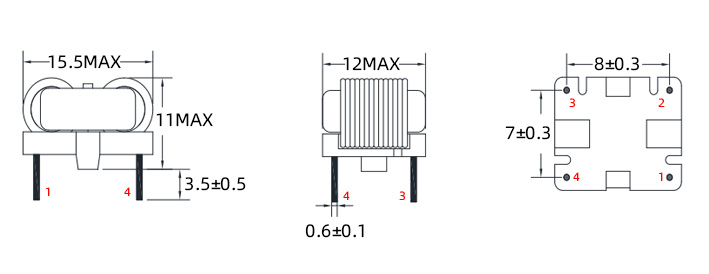

| SQ1010 Common Mode Inductor-Horizontal Size
SQ1010 Common Mode Inductor L*W*H：15.5*12*11mm
| SQ1010 Common Mode Inductor-Horizontal Winding
| SQ1010 Common Mode Inductor-Horizontal Application
SQ1010 Common Mode Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical equipment, and adapters
