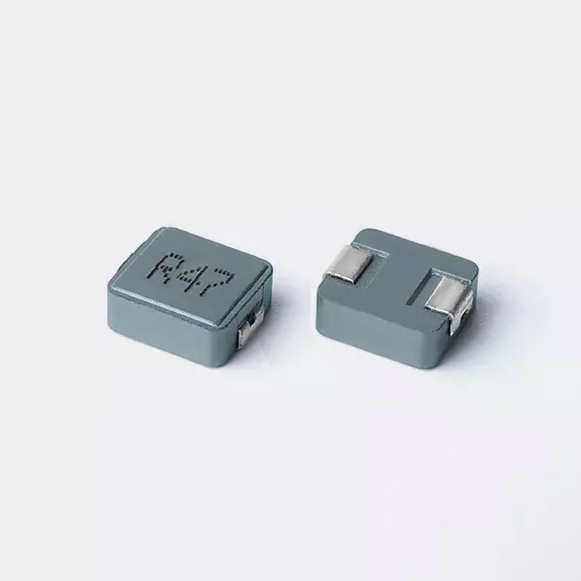

SC100704B Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 100704
L*W*H 10.5x6.9x4mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC100704B Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPTYPTYPTYP

SC100704B-R15M-R-S0.15 ±20%0.6 ±7%8546100KHz/0.25V1.pngSC100704B-R15M-R-S.PDF


Package：800pcs/r




|   SC100704B Molded Power Inductor Size


A：10.5±0.5 mmB：6.9±0.4 mm
C：4.0MAX mmD：2.8±0.5 mm
E：2.0±0.5 mmF：12.5typ mm
G：3.5typ mmI：6.5typ mm






|   SC100704B Molded Power Inductor Application

SC100704B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
