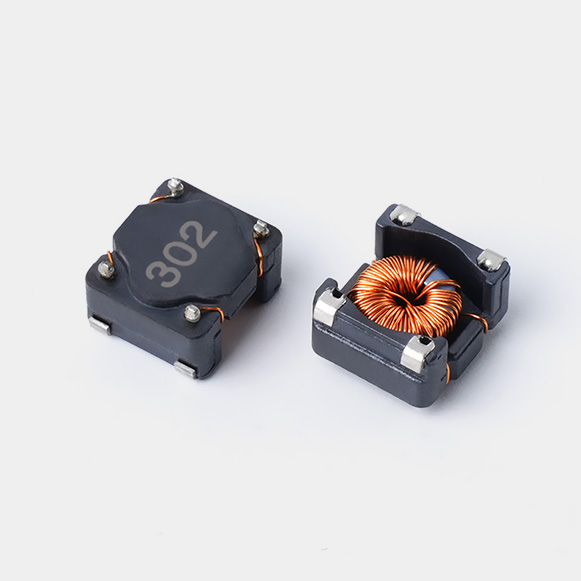

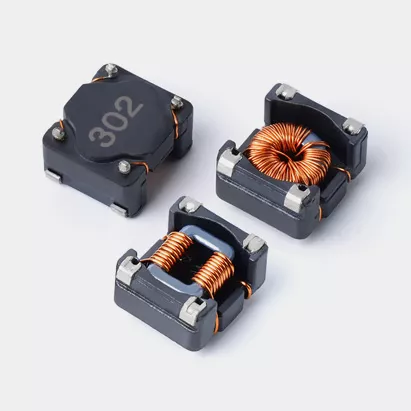

HCM1006 Common Mode Inductor

型号	电感值	直流电阻	额定电流	耐压	阻抗	频率范围	下载
Num	L	DCR	IDC	Hi-POT	Z	FrequencyRange	Download
	( μH ) at100KHz/0.1V	( mΩ )	( A )	( V )	( Ω )	( MHz )
		MAX	MAX	3mA/60s
HCM1006C-5R0Y	5±50%	10	5	500	500 MAX	108	HCM1006C-SERIES.PDF
HCM1006C-9R0Y	9±50%	11	3.5	500	800 MAX	105	HCM1006C-SERIES.PDF
HCM1006C-100Y	10±40%	30	4	600	100 MIN	10~300	HCM1006C-SERIES.PDF
HCM1006C-220Y	22±40%	35	3.8	600	300 MIN	10~200	HCM1006C-SERIES.PDF
HCM1006C-470Y	47±40%	40	3.2	600	800 MIN	10~100	HCM1006C-SERIES.PDF
HCM1006C-101Y	100±40%	25	3	1000	100 MIN	10~300	HCM1006C-SERIES.PDF
HCM1006C-121Y	120±40%	25	2.5	1000	200 MIN	10~200	HCM1006C-SERIES.PDF
HCM1006C-201Y	200±40%	15	3	1000	300 MIN	7~150	HCM1006C-SERIES.PDF
HCM1006C-221Y	220±40%	32	2.2	1000	350 MIN	7~150	HCM1006C-SERIES.PDF
HCM1006C-251Y	250±40%	35	2	1000	400 MIN	5~100	HCM1006C-SERIES.PDF
HCM1006C-331Y	330±40%	48	2.5	1000	500 MIN	5~100	HCM1006C-SERIES.PDF
HCM1006C-471Y	470±40%	65	1.6	1000	900 MIN	2~40	HCM1006C-SERIES.PDF
HCM1006C-501Y	500±40%	70	1.5	1000	800 MIN	2~50	HCM1006C-SERIES.PDF
HCM1006C-102Y	1000±40%	180	0.95	1000	1400 MIN	1~40	HCM1006C-SERIES.PDF
HCM1006C-202Y	2000±40%	270	0.8	300	2000 MIN	0.5~15	HCM1006C-SERIES.PDF
HCM1006C-222Y	2200±40%	300	0.75	300	3400 MIN	1~11	HCM1006C-SERIES.PDF
HCM1006C-302Y	3000±40%	330	0.7	300	3000 MIN	0.5~10	HCM1006C-SERIES.PDF
HCM1006C-332Y	3300±40%	360	0.65	300	4400 MIN	0.9~7	HCM1006C-SERIES.PDF
HCM1006C-392Y	3900±40%	540	0.52	300	5000 MIN	0.7~6	HCM1006C-SERIES.PDF
HCM1006C-402Y	4000±40%	600	0.45	300	4000 MIN	0.5~5	HCM1006C-SERIES.PDF
HCM1006C-472Y	4700±40%	720	0.35	300	6200 MIN	0.6~3	HCM1006C-SERIES.PDF
HCM1006C-502Y	5000±40%	780	0.3	300	5000 MIN	0.5~3	HCM1006C-SERIES.PDF

Package：800pcs/r

|   HCM1006 Common Mode Inductor Size

|   HCM1006 Common Mode Inductor Winding

|   HCM1006 Common Mode Inductor Application

HCM1006 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
