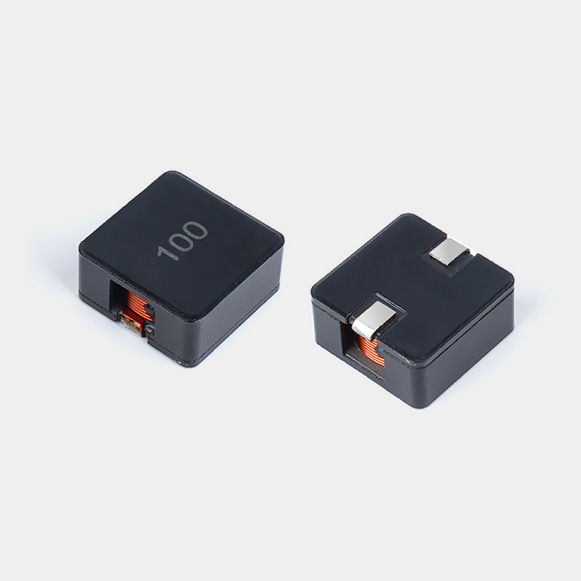

SFN1005 High Current Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FREQ.	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SFN1005-R16M-R-S	0.16	0.51	0.56	58	25	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-R39M-R-S	0.39	0.67	0.74	37	24	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-R72M-R-S	0.72	1.3	1.43	35	22	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-1R2M-R-S	1.2	1.8	1.98	25	20	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-1R8M-R-S	1.8	3.5	3.85	18	16	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-2R4M-R-S	2.4	4.75	5.23	17	14	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-3R3M-R-S	3.3	5.9	6.49	15	12	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-4R2M-R-S	4.2	7.1	7.81	14	11	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-5R6M-R-S	5.6	10.3	11.33	12	10	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-6R8M-R-S	6.8	12.5	13.75	10	8.4	100KHz/1V	SFN1005-SERIES.PDF

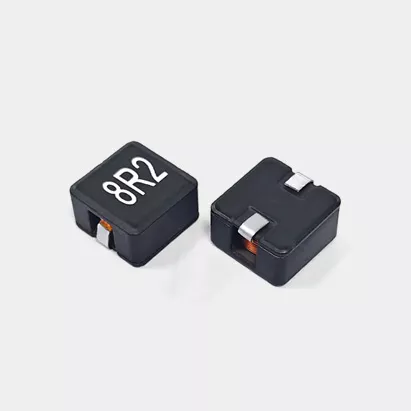

SFN1005-8R2M-R-S	8.2	13.6	14.96	9.5	8	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-100M-R-S	10	16.3	17.93	8.5	7.2	100KHz/1V	SFN1005-SERIES.PDF
SFN1005-150M-R-S	15	34.5	37.95	6.5	5	100KHz/1V	SFN1005-SERIES.PDF

Package：800pcs/r

|   SFN1005 High Current Inductor Size

|   SFN1005 High Current Inductor Application

SFN1005 High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
