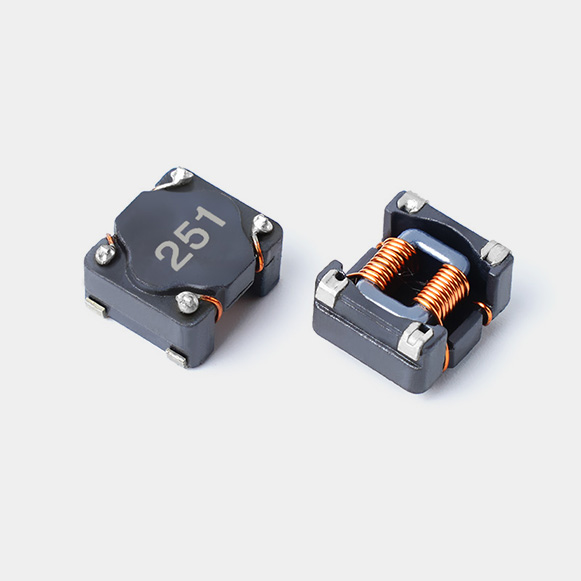

HCM1005 Common Mode Inductor

型号	电感值	直流电阻	额定电流	耐压	阻抗	频率范围	下载
Num	L	DCR	IDC	Hi-POT	Z	FrequencyRange	Download
	( μH ) at100KHz/0.1V	( mΩ )	( A )	( V )	( Ω )	( MHz )
		MAX	MAX	3mA/60s
HCM1005C-5R0Y	5±50%	10	5	500	500 MAX	108	HCM1005C-SERIES.PDF
HCM1005C-9R0Y	9±50%	11	3.5	500	800 MAX	105	HCM1005C-SERIES.PDF
HCM1005C-100Y	10±40%	30	4	600	100 MIN	10~300	HCM1005C-SERIES.PDF
HCM1005C-220Y	22±40%	35	3.8	600	300 MIN	10~200	HCM1005C-SERIES.PDF
HCM1005C-470Y	47±40%	40	3.2	600	800 MIN	10~100	HCM1005C-SERIES.PDF
HCM1005C-101Y	100±40%	25	3	1000	100 MIN	10~300	HCM1005C-SERIES.PDF
HCM1005C-121Y	120±40%	25	2.5	1000	200 MIN	10~200	HCM1005C-SERIES.PDF
HCM1005C-201Y	200±40%	15	3	1000	300 MIN	7~150	HCM1005C-SERIES.PDF
HCM1005C-221Y	220±40%	32	2.2	1000	350 MIN	7~150	HCM1005C-SERIES.PDF
HCM1005C-251Y	250±40%	35	2	1000	400 MIN	5~100	HCM1005C-SERIES.PDF
HCM1005C-331Y	330±40%	48	2.5	1000	500 MIN	5~100	HCM1005C-SERIES.PDF
HCM1005C-471Y	470±40%	65	1.6	1000	900 MIN	2~40	HCM1005C-SERIES.PDF
HCM1005C-501Y	500±40%	70	1.5	1000	800 MIN	2~50	HCM1005C-SERIES.PDF
HCM1005C-102Y	1000±40%	180	0.95	1000	1400 MIN	1~40	HCM1005C-SERIES.PDF

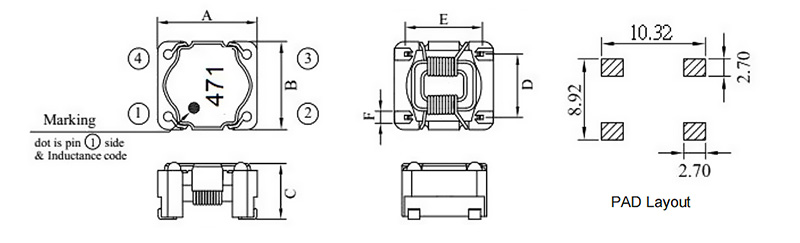

|   HCM1005 Common Mode Inductor Size

|   HCM1005 Common Mode Inductor Winding

|   HCM1005 Common Mode Inductor Application

HCM1005 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
