PK2W0912 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 0912
L*W*H 10.5x14x10mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W0912 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流测试频率下载
NumLDCRIDCTEST FREQ.Download

( μH )( mΩ )( A )


TYPMAXMAX

PK2W0912-470K-B-S-LF47 ±10%1251.81KHz/0.3V
1.pngPK2W0912-SERIES.PDF
PK2W0912-331K-B-S-LF330 ±10%7501.5100KHz/0.25V1.pngPK2W0912-SERIES.PDF
PK2W0912-471K-B-S-LF470±10%8000.61KHz/0.3V1.pngPK2W0912-SERIES.PDF
PK2W0912-561K-B-S-LF560 ±10%9500.51KHz/0.3V1.pngPK2W0912-SERIES.PDF
PK2W0912-601K-B-S-LF600 ±10%12000.181KHz/0.3V1.pngPK2W0912-SERIES.PDF


Package：120pcs/Tray

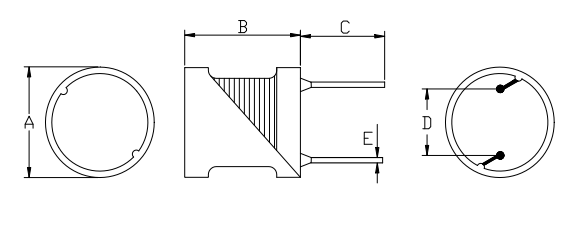

|   PK2W0912 Drum Core Inductor Size


A：10.5MAX mmB：14.0MAX mm
C：10±2.0 mmD：5.0±0.5 mm
E：0.8±0.1 mm






|   PK2W0912 Drum Core Inductor Application

PK2W0912 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
