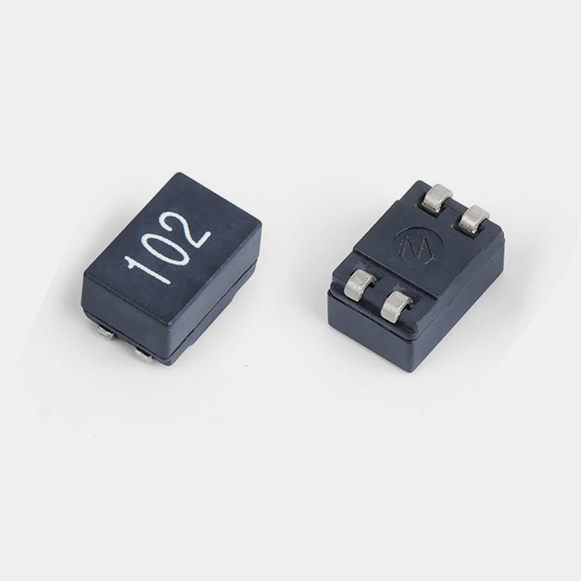

SFT0905 Common Mode Inductor

型号	电感值	测试频率	直流电阻	额定电流	阻抗	频率范围	耐压	下载
Num	L	TEST FREQ.	DCR	IDC	Z	FrequencyRange	Hi-Pot	Download
	( μH )		( Ω )	( A )	( Ω )	( MHz )	( V )
	TYP		MAX	MAX	MIN		50Hz 3mA/3s
SFT0905B-100	10 ±50%/-30%	1KHz/0.1V	0.08	1.6	300	20~300	500	SFT0905-SERIES.PDF
SFT0905S-100	10 ±50%/-30%	1KHz/0.1V	0.08	1.6	300	20~300	500	SFT0905-SERIES.PDF
SFT0905B-250	25 ±50%/-30%	1KHz/0.1V	0.16	1	600	20~150	500	SFT0905-SERIES.PDF
SFT0905S-250	25 ±50%/-30%	1KHz/0.1V	0.16	1	600	20~150	500	SFT0905-SERIES.PDF
SFT0905B-400	40 ±50%/-30%	1KHz/0.1V	0.25	0.9	800	20~100	500	SFT0905-SERIES.PDF
SFT0905S-400	40 ±50%/-30%	1KHz/0.1V	0.25	0.9	800	20~100	500	SFT0905-SERIES.PDF
SFT0905B-510	51 ±50%/-30%	1KHz/0.1V	0.16	0.8	1000	20~100	500	SFT0905-SERIES.PDF
SFT0905S-510	51 ±50%/-30%	1KHz/0.1V	0.16	0.8	1000	20~100	500	SFT0905-SERIES.PDF
SFT0905B-251	250±50%	100KHz/5mV	0.13	1.2	600	3~20	500	SFT0905-SERIES.PDF
SFT0905S-251	250±50%	100KHz/5mV	0.13	1.2	600	3~20	500	SFT0905-SERIES.PDF
SFT0905B-471	470±50%	100KHz/5mV	0.14	1.1	800	2~20	500	SFT0905-SERIES.PDF
SFT0905B-501	500±50%	100KHz/5mV	0.15	1	900	1~20	500	SFT0905-SERIES.PDF
SFT0905B-102	1000±50%	100KHz/5mV	0.31	0.8	1000	1~15	500	SFT0905-SERIES.PDF
SFT0905B-202	2000±50%	100KHz/5mV	0.42	0.6	3000	1~5	500	SFT0905-SERIES.PDF
SFT0905S-202	2000±50%	100KHz/5mV	0.42	0.6	3000	1~5	500	SFT0905-SERIES.PDF
SFT0905B-472	4700±50%	100KHz/5mV	0.9	0.4	3000	0.3~3	500	SFT0905-SERIES.PDF
SFT0905B-652	6500±50%	10KHz/50mV	1.05	0.3	4000	0.3~2	500	SFT0905-SERIES.PDF
SFT0905B-103	10000±50%	10KHz/50mV	1.15	0.26	4000	0.3~2	500	SFT0905-SERIES.PDF

Package：1000pcs/r，SFT0905B：Bifilar，SFT0905S：Sector

|   SFT0905 Common Mode Inductor Size

|   SFT0905 Common Mode Inductor Winding

|   SFT0905 Common Mode Inductor Application

SFT0905 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
