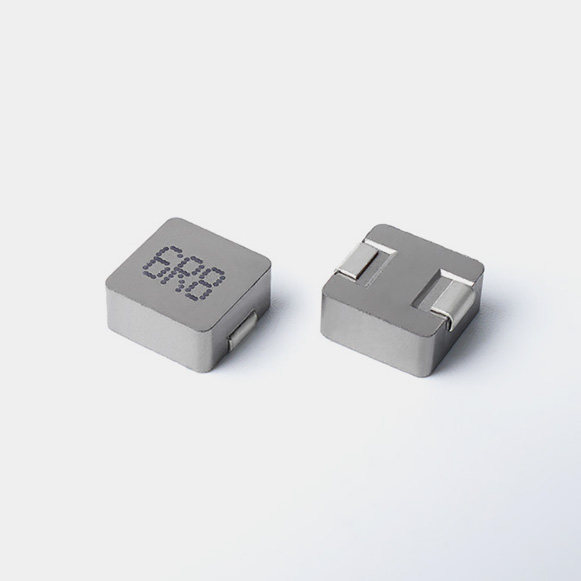

SC0840N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 0840
L*W*H 8.5x8x4mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC0840N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )



MAXTYPTYP

SC0840N-100M-R-S10 ±20%4584.5100KHz/1V1.pngSC0840N-100M-R-S.PDF
SC0840N-220M-R-S22 ±20%1004.54100KHz/1V1.pngSC0840N-100M-R-S.PDF


Package：1000pcs/r




|   SC0840N Molded Power Inductor Size


A：8.5±0.3 mmB：8.0±0.3 mm
C：4.0MAX mmD：2.0±0.4 mm
E：3.0±0.3 mmF：9.6typ mm
G：4.0typ mmI：3.5typ mm







|   SC0840N Molded Power Inductor Application

SC0840N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
