PK2W0810 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 0810
L*W*H 9.5x12x15mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W0810 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流测试频率下载
NumLDCRIsatTEST FREQ.Download

( μH )( mΩ )( A )


TYPMAXMAX

PK2W0810-2R2M-B-S-LF2.2 ±20%13.341KHz/0.3V
1.pngPK2W0808-SERIES.PDF
PK2W0810-3R3K-B-S-LF3.3 ±10%4031KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-4R7M-B-S-LF4.7 ±20%17.641KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-6R8M-B-S-LF6.8 ±20%334100KHz/1V1.pngPK2W0808-SERIES.PDF
PK2W0810-100K-B-S-LF10 ±10%29.431KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-120K-B-S-LF12 ±10%282.11KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-140K-B-S-LF14 ±10%402.21KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-150K-B-S-LF15 ±10%422.61KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-220K-B-S-LF22 ±10%80210KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-330K-B-S-LF33 ±10%803.9100KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-680M-B-S-LF68 ±20%2301.5100KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-820M-B-S-LF82 ±20%1801.31KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-181K-B-S-LF180 ±10%2800.651KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-221K-B-S-LF220 ±10%4520.81KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-331K-B-S-LF330 ±10%6600.61KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-102K-B-S-LF1000 ±10%17000.261KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-152K-B-S-LF1500 ±10%40300.251KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-202K-B-S-LF2000 ±10%36000.31KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-222K-B-S-LF2200 ±10%35000.21KHz/0.1V1.pngPK2W0808-SERIES.PDF
PK2W0810-302K-B-S-LF3000 ±10%63000.21KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-332K-B-S-LF3300 ±10%61000.151KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-392K-B-S-LF3900 ±10%110000.31KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-402K-B-S-LF4000 ±10%109000.11KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-472K-B-S-LF4700 ±10%115000.131KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-502K-B-S-LF5000 ±10%76800.11KHz/0.3V1.pngPK2W0808-SERIES.PDF
PK2W0810-562K-B-S-LF5600 ±10%135000.121KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-602K-B-S-LF6000 ±10%112000.11KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-822K-B-S-LF8200 ±10%264000.061KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-103K-B-S-LF10000 ±10%285000.0581KHz/0.25V1.pngPK2W0808-SERIES.PDF
PK2W0810-333K-B-S-LF33000 ±10%650000.02579.6KHz/0.1V1.pngPK2W0808-SERIES.PDF


Package：130pcs/Tray

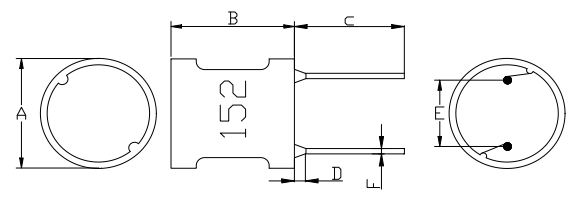

|   PK2W0810 Drum Core Inductor Size


A：9.5MAX mmB：12.0MAX mm
C：15±2.0 mmD：0.6±0.1 mm
E：5.0±0.5 mm






|   PK2W0810 Drum Core Inductor Application

PK2W0810 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
