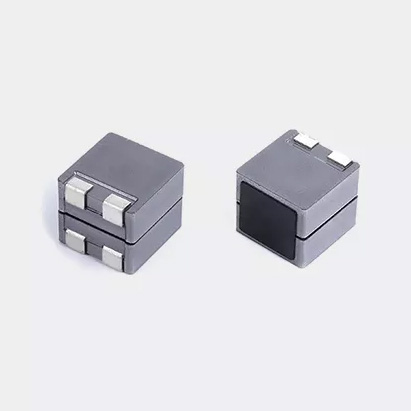

FBL08089H Inductor for Digital Amplifier
share
Technical highlights of FBL08089H series Inductor for Digital Amplifier (produced by Fenfa Electronics):
Design frequency range ≤ 1 MHz
Compact size, metal powder core for high saturation current
Low DCR, achieving low loss
Design frequency range ≤ 1 MHz
Compact size, metal powder core for high saturation current
Low DCR, achieving low loss
Detail
| FBL08089H Inductor for Digital Amplifier Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 饱和电流 | 额定电压 | 下载 | |||
| Num | L | DCR | IDC | Isat | Rated Voltage | Download | |||
| ( μH ) at 100KHz/0.25V | ( mΩ ) | ( A ) | ( A ) | （V） | |||||
| ±20% | TYP | MAX | TYP | MAX | TYP | MAX | MAX | ||
| FBL08089H-3R3M-R-S | 3.3 | 13.2 | 15.8 | 16.8 | 14.4 | 6.3 | 5.6 | 75 |  |
| FBL08089H-6R8M-R-S | 6.8 | 23.5 | 28.2 | 9.6 | 8.2 | 4.7 | 4.2 | 75 | |
| FBL08089H-100M-R-S | 10 | 33 | 40 | 8 | 6.8 | 4 | 3.6 | 75 | |
| FBL08089H-150M-R-S | 15 | 57 | 68.4 | 6.6 | 5.6 | 3 | 2.7 | 75 | |
| FBL08089H-220M-R-S | 22 | 88 | 105 | 4.6 | 3.9 | 2.4 | 2.2 | 75 | |
Package：500pcs/tray

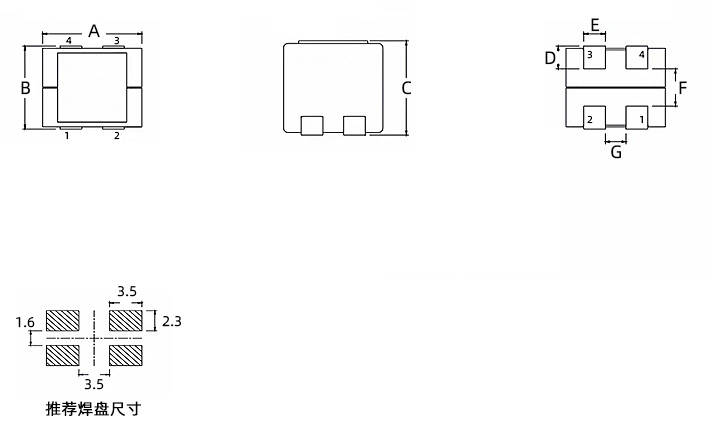

| FBL08089H Inductor for Digital Amplifier Size
| A：8.15±0.2 mm | B：8±0.2 mm |
| C：8.9±0.2 mm | D：2.3±0.2 mm |
| E：1.95±0.2 mm | F：3.2typ mm |
| G：1.9±0.2 mm |

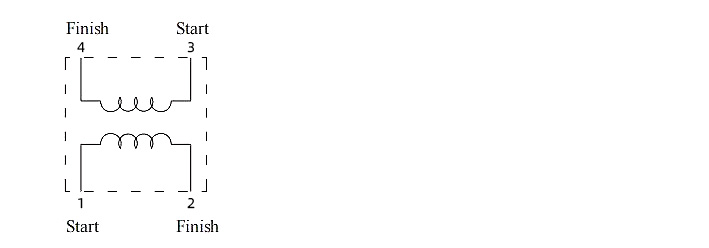

| FBL08089H Inductor for Digital Amplifier Winding
| FBL08089H Inductor for Digital Amplifier Application
FBL08089H Inductor for Digital Amplifier is widely used in home digital power amplifiers, Class D power amplifiers, audio equipment, and automotive digital power amplifier devices.
