PK2W0808 Drum Core Inductor

型号	电感值	直流电阻	Q值		额定电流	自谐振频率	测试频率	下载
Num	L	DCR	Q		IDC	SRF	TEST FREQ.	Download
	( μH )	( mΩ )		TEST FREQ.	( A )	( MHz )
	TYP	MAX			MAX
PK2W0808-2R2M-B-S-LF	2.2	17	40	7.96MHz	4.1	56	1KHz/0.25V	PK2W0808-SERIES.PDF
PK2W0808-3R3M-B-S-LF	3.3	21	40	7.96MHz	3.2	41	7.96MHz/0.1V	PK2W0808-SERIES.PDF
PK2W0808-100K-B-S-LF	10	41	65	2.52MHz	2.4	17	1KHz/0.25V	PK2W0808-SERIES.PDF
PK2W0808-330K-B-S-LF	33	100	40	2.52MHz	1.4	8.8	1KHz/0.25V	PK2W0808-SERIES.PDF
PK2W0808-470K-B-S-LF	47	150	40	2.52MHz	1.2	8.2	1KHz/0.25V	PK2W0808-SERIES.PDF
PK2W0808-221K-B-S-LF	220	730	35	796KHz	0.53	3.7	1KHz/0.25V	PK2W0808-SERIES.PDF

Package：800pcs/tray

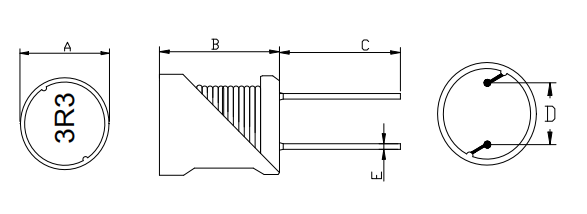

|   PK2W0808 Drum Core Inductor Size

|   PK2W0808 Drum Core Inductor Application

PK2W0808 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
