PK2W0807 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 0807
L*W*H 9.5x4.0x5.0mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W0807 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流测试频率下载
NumLDCRIDCTEST FREQ.Download

( μH )( mΩ )( A )


TYPMAXMAX

PK2W0807-100K-B-S-LF105651KHz/0.25V1.pngPK2W0807-SERIES.PDF
PK2W0807-150K-B-S-LF158241KHz/0.25V1.pngPK2W0807-SERIES.PDF


Package：168pcs/Tray

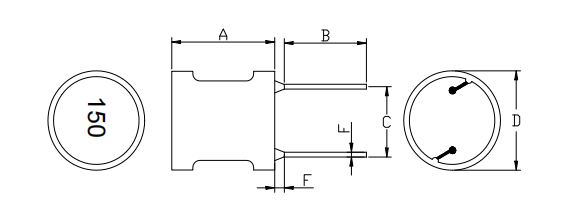

|   PK2W0807 Drum Core Inductor Size


A：9.5MAX mmB：4.0±0.5mm
C：5.0±0.5 mmD：10.0MAX mm
E：0.65±0.05 mmF：1.5MAX mm






|   PK2W0807 Drum Core Inductor Application

PK2W0807 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
