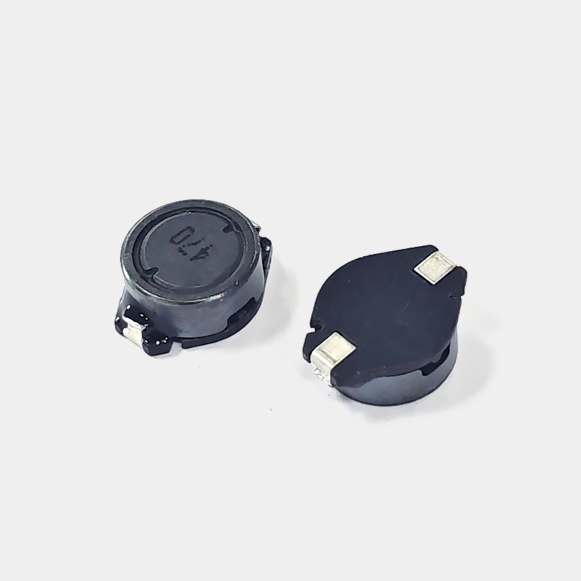

SFP0805C Power Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
SFP0805C-2R2N-R-S	2.2	40	2.5	100KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-3R9N-R-S	3.9	55	2.1	100KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-5R6N-R-S	5.6	65	1.95	100KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-8R2N-R-S	8.2	80	1.75	100KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-100M-R-S	10	100	1.5	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-120M-R-S	12	120	1.4	1KHz/0.1V	SF0805C-SERIES.PDF
SFP0805C-150M-R-S	15	140	1.3	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-180M-R-S	18	160	1.2	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-220M-R-S	22	180	1.1	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-270M-R-S	27	200	1	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-330M-R-S	33	240	0.92	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-390M-R-S	39	260	0.84	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-470M-R-S	47	280	0.75	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-560M-R-S	56	380	0.68	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-680M-R-S	68	440	0.6	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-820M-R-S	82	550	0.54	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-101M-R-S	100	600	0.5	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-121M-R-S	120	750	0.45	1KHz/0.1V	SFP0805C-SERIES.PDF
SFP0805C-151M-R-S	150	900	0.4	1KHz/0.1V	SFP0805C-SERIES.PDF

Package：1000pcs/r

|   SFP0805C Power Inductor Size

|   SFP0805C Power Inductor Application

SFP0805C Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
