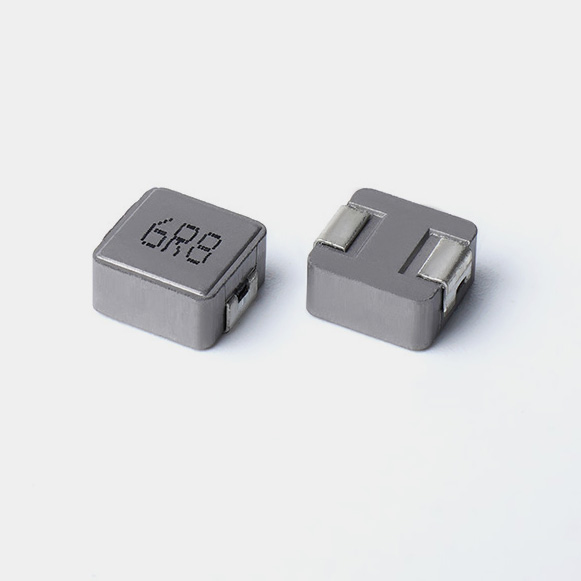

SC0650N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0650N-R56M-R-S	0.56	3.4	3.6	22	20	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-R68M-R-S	0.68	4.2	4.5	20	18	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-R82M-R-S	0.82	4.6	4.9	18	16.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-1R0M-R-S	1	5.6	6.5	15	13	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-1R5M-R-S	1.5	8.6	9	12	10	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-2R2M-R-S	2.2	13	13.6	10	8	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-3R3M-R-S	3.3	19.9	22	8	7	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-4R7M-R-S	4.7	28.9	30.3	7	6.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-5R6M-R-S	5.6	32.7	34.4	7	6	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-6R8M-R-S	6.8	42.5	44.6	5.5	5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-8R2M-R-S	8.2	48.3	60	5	4.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-100M-R-S	10	67.9	71.3	4.5	4	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-150M-R-S	15	115	121	6	3.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-220M-R-S	22	142	149	5.2	2.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-330M-R-S	33	171	180	4	2	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-470M-R-S	47	218.5	230	3.5	1.5	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-560M-R-S	56	266	280	3	1	100KHz/0.1V	SC0650N-SERIES.PDF
SC0650N-680M-R-S	68	342	360	2.5	1	100KHz/0.1V	SC0650N-SERIES.PDF

Package：1000pcs/r

|   SC0650N Molded Power Inductor Size

|   SC0650N Molded Power Inductor Application

SC0650N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
