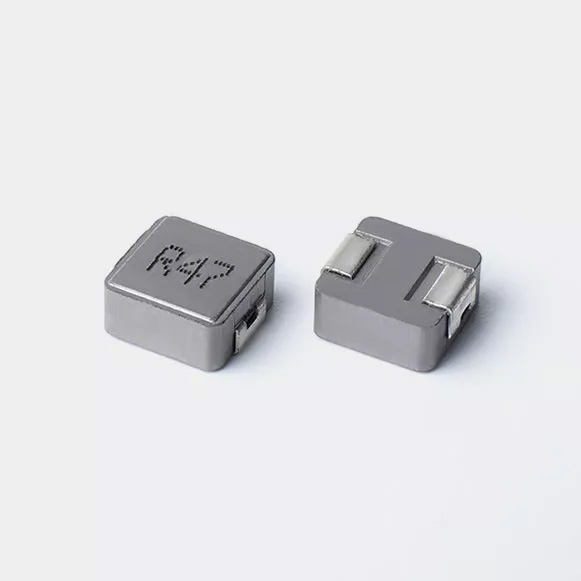

SC0640N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 0640
L*W*H 7.5x6.8x4mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC0640N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC0640N-R47M-R-S0.47 ±20%2.52018100KHz/1V1.pngSC0640N-R47M-R-S.PDF
SC0640N-100M-R-S10 ±20%705.54.8100KHz/0.1V1.pngSC0640N-100M-R-S.PDF


Package：1000pcs/r




|   SC0640N Molded Power Inductor Size


A：7.5MAX mmB：6.8MAX mm
C：4.0MAX mmD：1.6±0.3 mm
E：2.0±0.5 mmF：8.4typ mm
G：3.7typ mmI：3.5typ mm







|   SC0640N Molded Power Inductor Application

SC0640N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
