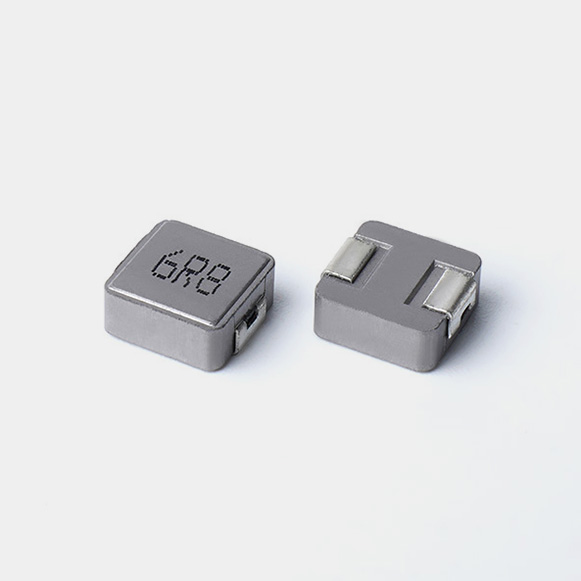

SC0630N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0630N-R10M-R-S	0.10	1.5	2.3	50	30	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R15M-R-S	0.15	1.5	2.5	48	29	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R20M-R-S	0.20	2.4	3.0	41	24	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R22M-R-S	0.22	2.8	3.1	37	23	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R30M-R-S	0.30	3.6	3.8	32	20.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R33M-R-S	0.33	3.6	3.9	30	20	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R47M-R-S	0.47	3.7	4.2	26	17.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R56M-R-S	0.56	4.8	5.3	25.5	17	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R68M-R-S	0.68	5.0	5.4	25	15.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-R82M-R-S	0.82	7.1	7.5	24	13	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-1R0M-R-S	1	7.3	10	22	11	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-1R2M-R-S	1.2	12.5	13	19	10	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-1R5M-R-S	1.5	12.5	15	18	9	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-2R2M-R-S	2.2	15.2	20	14	8	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-3R3M-R-S	3.3	21.8	27	11	7	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-4R7M-R-S	4.7	35.7	40	10	5.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-5R6M-R-S	5.6	47.5	50	9	5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-6R8M-R-S	6.8	48.7	60	8	4.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-8R2M-R-S	8.2	57	70	5.7	4	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-100M-R-S	10	99	105	5	3.5	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-150M-R-S	15	143	150	3.3	2.4	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-220M-R-S	22	190	200	2.5	2.0	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-330M-R-S	33	270	284	2.0	1.8	100KHz/0.1V	SC0630N-SERIES.PDF
SC0630N-470M-R-S	47	333	350	1.8	1.5	100KHz/0.1V	SC0630N-SERIES.PDF

Package：1000pcs/r

|   SC0630N Molded Power Inductor Size

|   SC0630N Molded Power Inductor Application

SC0630N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
