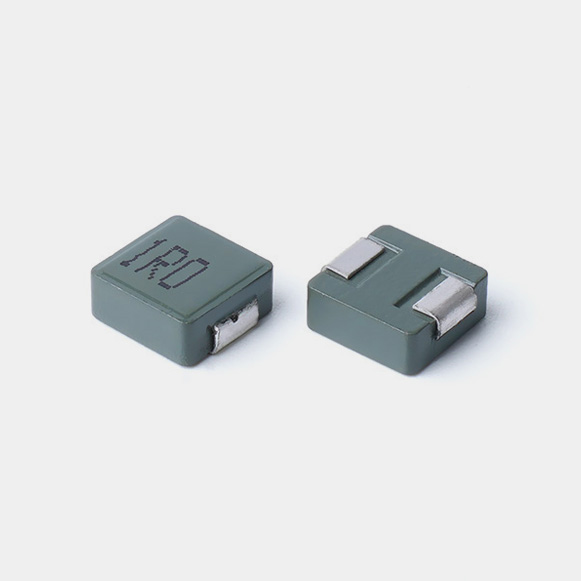

SC0630B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0630B-R10M-R-S	0.1	1.5	2.3	70	30	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R15M-R-S	0.15	1.5	2.5	68	29	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R20M-R-S	0.2	2.4	3.0	55	24	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R22M-R-S	0.22	2.4	3.1	48	24	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R30M-R-S	0.30	3.2	3.5	47	22	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R33M-R-S	0.33	3.2	3.5	46	22	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R47M-R-S	0.47	3.4	4.2	35	20	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R56M-R-S	0.56	4.8	5.3	34	18	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R68M-R-S	0.68	4.8	5.4	32	17	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-R82M-R-S	0.82	5.6	7.5	31	16	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-1R0M-R-S	1	7.0	10	30	15.5	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-1R2M-R-S	1.2	7.0	13	24	15	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-1R5M-R-S	1.5	12.6	15	23	11	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-2R2M-R-S	2.2	14.7	20	20	10	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-3R3M-R-S	3.3	26.8	30	18	8	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-4R7M-R-S	4.7	36.3	40	14	7	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-5R6M-R-S	5.6	43.0	50	13	6	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-6R8M-R-S	6.8	55.0	60	12	5.5	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-8R2M-R-S	8.2	55.0	70	11	5.0	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-100M-R-S	10	64.9	85	8	4.5	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-150M-R-S	15	137.3	150	7.5	3.5	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-220M-R-S	22	139.6	180	5.0	3.2	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-330M-R-S	33	146.6	220	2.8	2.8	100KHz/0.25V	SC0630B-SERIES.PDF
SC0630B-470M-R-S	47	336	400	2.2	2.0	100KHz/0.25V	SC0630B-SERIES.PDF

Package：1500pcs/r

|   SC0630B Molded Power Inductor Size

|   SC0630B Molded Power Inductor Application

SC0630B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
