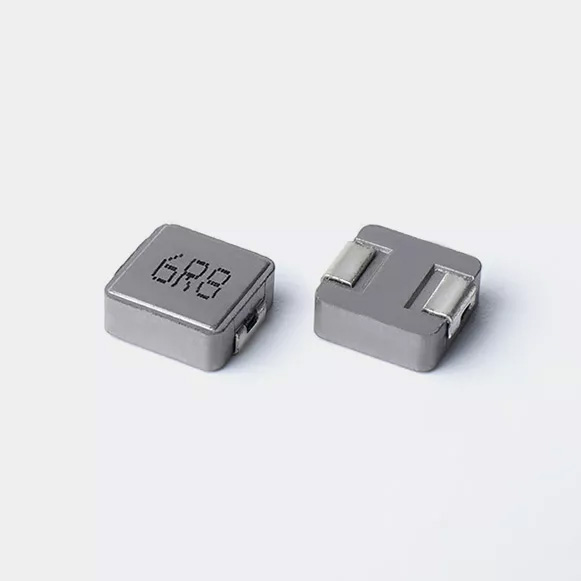

SC0624N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0624N-R22M-R-S	0.22	2.7	3.2	34	21	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-R33M-R-S	0.33	3.5	4.1	24.5	18	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-R47M-R-S	0.47	4.3	5.1	22	15	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-R68M-R-S	0.68	6.3	7.2	21	13	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-1R0M-R-S	1	11.5	13.5	16	11	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-1R5M-R-S	1.5	17	20	15	9	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-2R2M-R-S	2.2	23.8	28	14	7	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-3R3M-R-S	3.3	33.1	39	12	6	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-4R7M-R-S	4.7	42.5	50	10	5	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-6R8M-R-S	6.8	59.5	70	6	4	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-100M-R-S	10	85.8	101	4	3.1	100KHz/0.1V	SC0624N-SERIES.PDF
SC0624N-150M-R-S	15	136	160	3.3	2.5	100KHz/0.1V	SC0624N-SERIES.PDF

Package：1000pcs/r

|   SC0624N Molded Power Inductor Size

|   SC0624N Molded Power Inductor Application

SC0624N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
