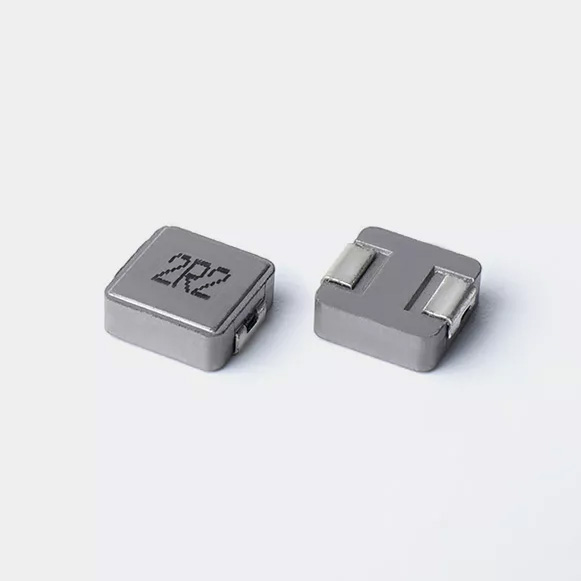

SC0620N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 0620
L*W*H 7.5x6.8x2mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC0620N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC0620N-2R2M-R-S2 ±20%3587100KHz/0.1V1.pngSC0620N-2R2M-R-S.PDF
SC0620N-4R7M-R-S4.7 ±20%6074.3100KHz/1V1.pngSC0620N-4R7M-R-S.PDF


Package：1500pcs/r




|   SC0620N Molded Power Inductor Size


A：7.5MAX mmB：6.8MAX mm
C：2.0MAX mmD：1.6±0.3 mm
E：3.0±0.3 mmF：8.4 mm
G：3.7 mmI：3.5 mm







|   SC0620N Molded Power Inductor Application

SC0620N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
