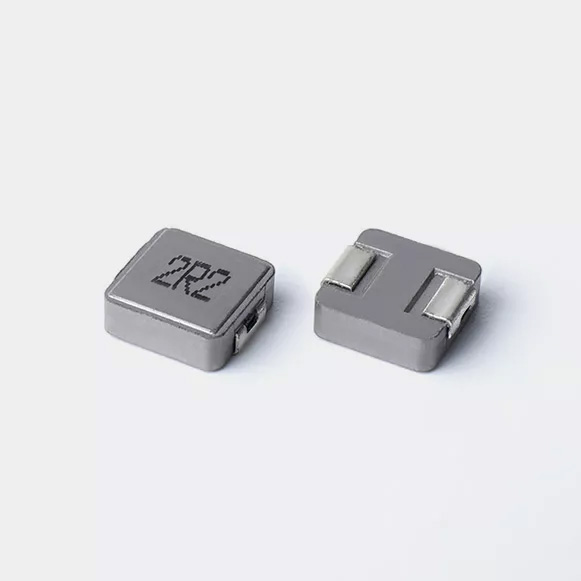

SC0618N Molded Power Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	TYP	TYP
SC0618N-R22M-R-S	0.22 ±20%	3.5	24	22	100KHz/1V	SC0618N-R22M-R-S.PDF
SC0618N-R47M-R-S	0.47 ±20%	8.4	18	11.5	100KHz/0.1V	SC0618N-R47M-R-S.PDF
SC0618N-1R0M-R-S	1 ±20%	16	14	8.5	100KHz/0.1V	SC0618N-1R0M-R-S.PDF
SC0618N-2R0M-R-S	2 ±20%	35	8	7	100KHz/0.1V	SC0618N-2R0M-R-S.PDF
SC0618N-2R2M-R-S	2.2 ±20%	35	10	6	100KHz/0.1V	SC0618N-2R2M-R-S.PDF
SC0618N-6R8M-R-S	6.8 ±20%	110	4.5	3	100KHz/0.1V	SC0618N-6R8M-R-S.PDF

Package：2000pcs/r

|   SC0618N Molded Power Inductor Size

|   SC0618N Molded Power Inductor Application

SC0618N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
