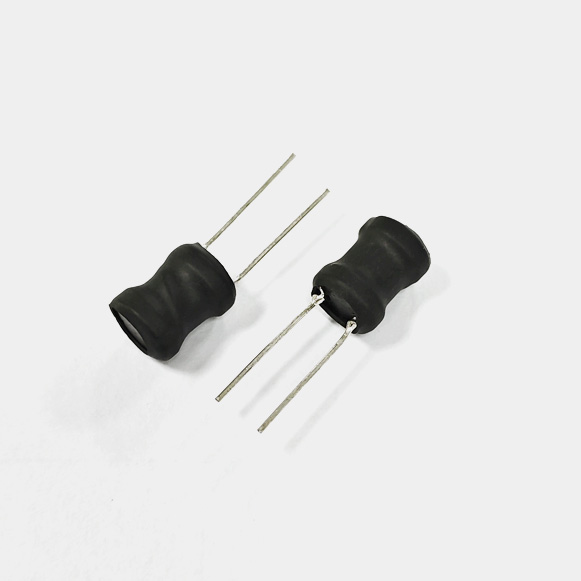

PK2W0608 Drum Core Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FREQ.	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
PK2W0608-3R5M-B-S-LF	3.5	21	2	1KHz/0.3V	PK2W0608-SERIES.PDF
PK2W0608-100M-B-S-LF	10	40.70	1.5	1KHz/0.3V	PK2W0608-SERIES.PDF
PK2W0608-150M-B-S-LF	15	67	1.2	1KHz/0.25V	PK2W0608-SERIES.PDF
PK2W0608-220M-B-S-LF	22	79	1	1KHz/0.3V	PK2W0608-SERIES.PDF
PK2W0608-470M-B-S-LF	47	300	0.6	1KHz/0.25V	PK2W0608-SERIES.PDF
PK2W0608-560M-B-S-LF	56	169	0.6	1KHz/0.25V	PK2W0608-SERIES.PDF
PK2W0608-680M-B-S-LF	68	370	0.75	2.52MHz/0.1V	PK2W0608-SERIES.PDF
PK2W0608-101M-B-S-LF	100	321	1	1KHz/0.3V	PK2W0608-SERIES.PDF
PK2W0608-331M-B-S-LF	330	1062	0.25	1KHz/0.3V	PK2W0608-SERIES.PDF
PK2W0608-102M-B-S-LF	1000	3630	0.17	1KHz/1V	PK2W0608-SERIES.PDF
PK2W0608-392M-B-S-LF	3900	11000	0.05	1KHz/0.3V	PK2W0608-SERIES.PDF

Package：500pcs/tray

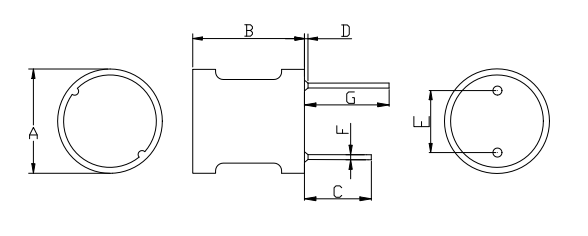

|   PK2W0608 Drum Core Inductor Size

|   PK2W0608 Drum Core Inductor Application

PK2W0608 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
