FBL06077H Inductor for Digital Amplifier
share
Technical highlights of FBL06077H series Inductor for Digital Amplifier (produced by Fenfa Electronics):
Applicable design frequency range ≤ 1 MHz
Metal powder core molded, achieving high saturation current
Smaller size, low DCR, achieving low loss
Applicable design frequency range ≤ 1 MHz
Metal powder core molded, achieving high saturation current
Smaller size, low DCR, achieving low loss
Detail
| FBL06077H Inductor for Digital Amplifier Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 饱和电流 | 额定电压 | 下载 | |||
| Num | L | DCR | IDC | Isat | Rated Voltage | Download | |||
| ( μH ) at 100KHz/0.25V | ( mΩ ) | ( A ) | ( A ) | （V） | |||||
| ±20% | TYP | MAX | TYP | MAX | TYP | MAX | MAX | ||
| FBL06077H-1R0M-R-S | 1 | 5.2 | 6.4 | 10 | 8.8 | 19.3 | 16.5 | 75 |  |
| FBL06077H-3R3M-R-S | 2.2 | 15.6 | 19.2 | 5.7 | 5.1 | 13 | 11.1 | 75 | |
| FBL06077H-6R8M-R-S | 3.3 | 35.6 | 42.8 | 4.2 | 3.6 | 9 | 7.5 | 75 | |
| FBL06077H-100M-R-S | 10 | 43 | 49 | 3.5 | 3.2 | 6.8 | 5.8 | 75 | |
| FBL06077H-150M-R-S | 15 | 75 | 90 | 4.6 | 2.7 | 2.4 | 5.1 | 75 | |
| FBL06077H-220M-R-S | 22 | 112 | 134 | 4.6 | 2.2 | 2 | 3.7 | 75 | |
Package：600pcs/tray

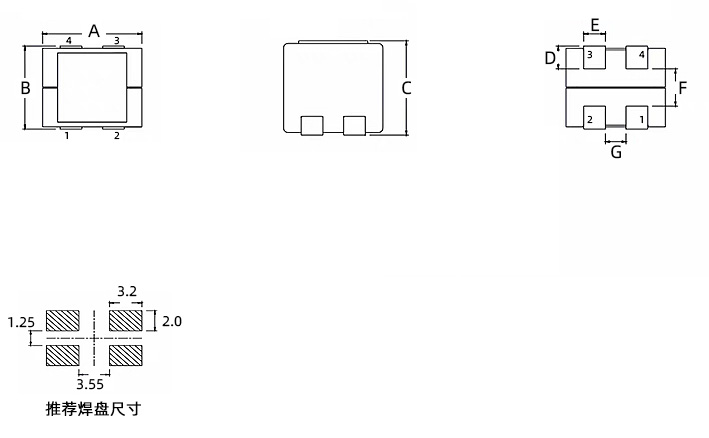

| FBL06077H Inductor for Digital Amplifier Size
| A：6.9±0.2 mm | B：7.6±0.2 mm |
| C：7.3±0.2 mm | D：2.0±0.2 mm |
| E：1.65±0.2 mm | F：3.4typ mm |
| G：1.6±0.2 mm |
| FBL06077H Inductor for Digital Amplifier Winding
| FBL06077H Inductor for Digital Amplifier Application
FBL06077H Inductor for Digital Amplifier is widely used in home digital amplifiers, Class D amplifiers, audio equipment, and automotive digital amplifier devices.
