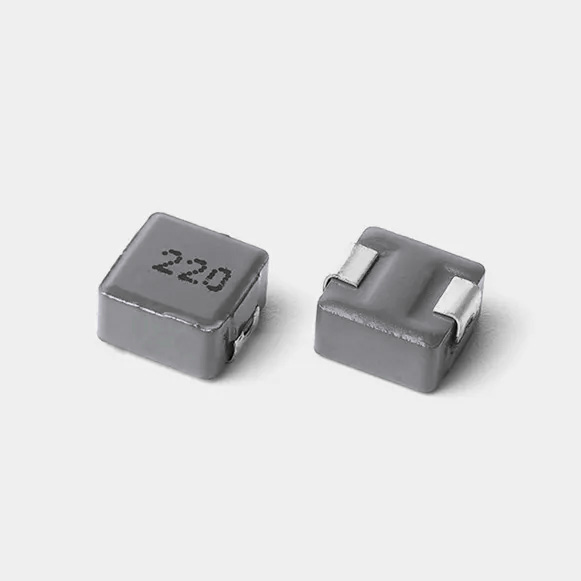

SC0530N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0530N-R15M-R-S	0.15	2.3	2.7	30	18	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-R22M-R-S	0.22	3.9	4.4	21	15.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-R33M-R-S	0.33	4.3	5	18	15	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-R47M-R-S	0.47	6.5	7	18.5	15	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-R68M-R-S	0.68	11	12	14	12	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-1R0M-R-S	1	13	14	11	8.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-1R2M-R-S	1.2	15	16	11	8.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-1R5M-R-S	1.5	23.5	25	8.5	8	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-2R2M-R-S	2.2	27	29	7.5	7	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-3R3M-R-S	3.3	35.5	38	6	5.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-4R7M-R-S	4.7	56.4	60	5	4.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-6R8M-R-S	6.8	84.6	90	4	3.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-8R2M-R-S	8.2	95	100	3.8	3.2	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-100M-R-S	10	117.5	125	3.5	3	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-150M-R-S	15	142	150	3	2.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-220M-R-S	22	254	270	1.7	1.5	100KHz/0.1V	SC0530N-SERIES.PDF
SC0530N-330M-R-S	33	353	500	1.2	0.8	100KHz/0.1V	SC0530N-SERIES.PDF

Package：2000pcs/r

|   SC0530N Molded Power Inductor Size

|   SC0530N Molded Power Inductor Application

SC0530N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
