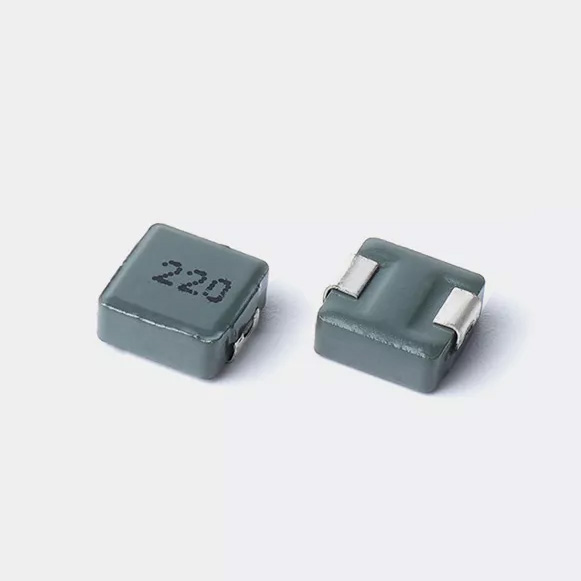

SC0520B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0520B-R22M-R-S	0.22	6	8	19.6	16	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-R47M-R-S	0.47	8	8.8	17.9	15	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-R68M-R-S	0.68	11.5	12.4	12.8	10	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-1R0M-R-S	1	20.5	22	11	9	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-1R5M-R-S	1.5	33	35	10	8	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-2R2M-R-S	2.2	42	45	8	7	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-3R3M-R-S	3.3	80	85.5	7.3	6	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-4R7M-R-S	4.7	109	116.6	4.3	3.5	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-6R8M-R-S	6.8	141	150	4.2	3	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-8R2M-R-S	8.2	160	170	4.1	3	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-100M-R-S	10	179	190	4	2.5	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-150M-R-S	15	256.5	270	2.5	2	100KHz/0.1V	SC0520B-SERIES.PDF
SC0520B-220M-R-S	22	285	300	2.2	1.8	100KHz/0.1V	SC0520B-SERIES.PDF

Package：3000pcs/r

|   SC0520B Molded Power Inductor Size

|   SC0520B Molded Power Inductor Application

SC0520B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
