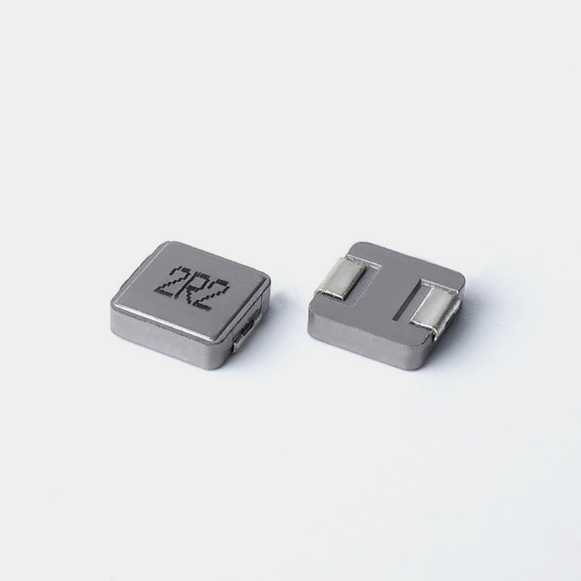

SC0515N Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 0515
L*W*H 5.8x5.4x2.1mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC0515N Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC0515N-2R2M-R-S2.2 ±20%5264100KHz/0.1V1.pngSC0530N-SERIES.PDF
SC0515N-6R8M-R-S6.8 ±20%17132.3100KHz/0.1V1.pngSC0530N-SERIES.PDF


Package：3000pcs/r




|   SC0515N Molded Power Inductor Size


A：5.8MAX mmB：5.4MAX mm
C：2.1MAX mmD：1.1±0.3 mm
E：2.0±0.3 mmF：5.2typ mm
G：2.5typ mmH：2.2typ mm







|   SC0515N Molded Power Inductor Application

SC0515N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
