SCM0510 Negative Coupling Inductor

share
WeChat
QQ
copy Link

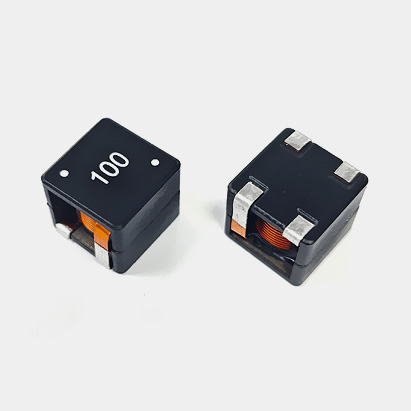

Technical highlights of the HCM0510 series negative coupled inductors (produced by Fendfa Electronics):
Designed for dual-channel buck power supplies
Low resistance and high current
Dual-winding negative coupling structure with a 180° phase difference between the two windings
Can improve ripple and transient performance
Size Code 0510
L*W*H 13.2x15.5x10.5mm
Bonding Pad 4
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SCM0510 Negative Coupling Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻耦合系数饱和电流温升电流下载
NumL（N1=N2）DCR（N1=N2）Coupling coefficientIsat（N1=N2）Irms（N1=N2）Download

( μH ) at100KHz/0.1V( Ω )
( A )
( A )

TYPMAX
MAXMAX
SCM0510-R80M-R-S0.8 ±20%1.760.9762281.png
SCM0510-1R2M-R-S1.2 ±20%2.640.9747231.png
SCM0510-1R7M-R-S1.7 ±20%3.630.9739211.png
SCM0510-2R2M-R-S2.2 ±20%4.620.9735181.png
SCM0510-2R9M-R-S2.9 ±20%6.160.9729171.png
SCM0510-3R5M-R-S3.5 ±20%8.250.9727141.png
SCM0510-4R4M-R-S4.4 ±20%10.560.9724121.png


Package：300pcs/r

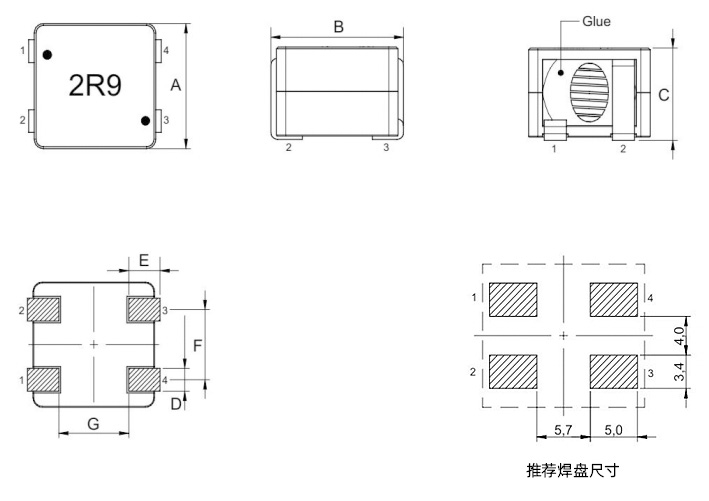

|   SCM0510 Negative Coupling Inductor Size


A：13.2±0.3 mmB：15.5MAX mm
C：10.5MAX mmD：2.4ref mm
E：3.2ref mmF：7.4ref mm
G：7.6ref mm

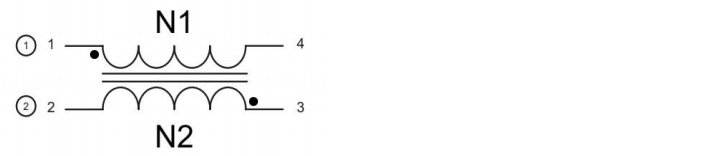

|   SCM0510 Negative Coupling Inductor Winding







|   SCM0510 Negative Coupling Inductor Application

SCM0510 Negative Coupling Inductor is widely used in automotive electronics, unmanned aerial vehicles, consumer electronics, switching power supplies, multimedia devices, industrial equipment, and communication equipment.
