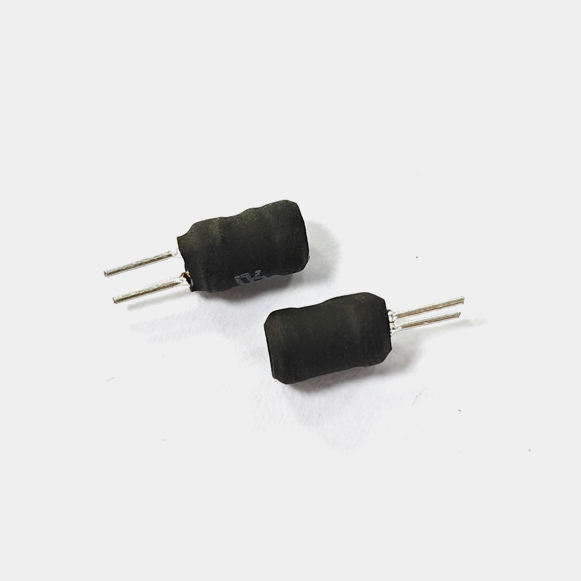

PK2W0507 Drum Core Inductor

share
WeChat
QQ
copy Link
Size Code 0507
L*W*H 6x9.5x15mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PK2W0507 Drum Core Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻额定电流测试频率下载
NumLDCRIDCTEST FREQ.Download

( μH )( mΩ )( A )


TYPMAXMAX

PK2W0507-220M-B-S-LF2.21500.81KHz/0.1V1.pngPK2W0507-SERIES.PDF
PK2W0507-102K-B-S-LF100048000.121KHz/0.1V1.pngPK2W0507-SERIES.PDF
PK2W0507-152K-B-S-LF150071000.11KHz/0.1V1.pngPK2W0507-SERIES.PDF
PK2W0507-222K-B-S-LF220098000.081KHz/0.1V1.pngPK2W0507-SERIES.PDF


Package：500pcs/tray

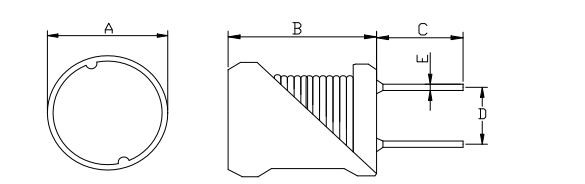

|   PK2W0507 Drum Core Inductor Size


A：6.0MAX mmB：9.5MAX mm
C：15±2.0 mmD：2.5±0.5 mm
E：0.5±0.1 mm






|   PK2W0507 Drum Core Inductor Application

PK2W0507 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
