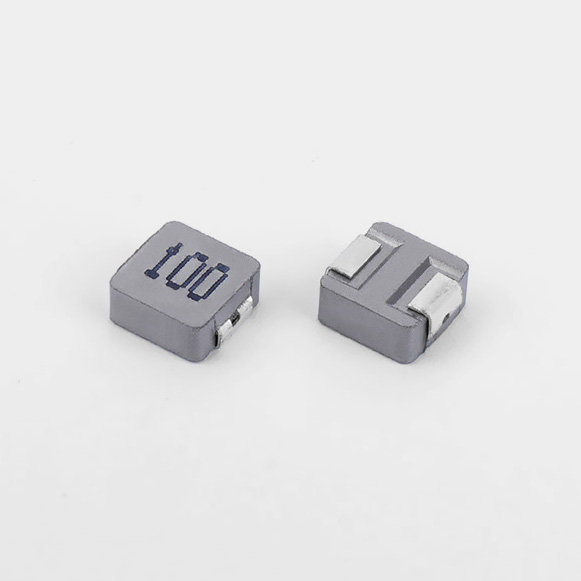

SC0420N Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0420N-R33M-R-S	0.33	6.7	7.0	11.5	9.8	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-R47M-R-S	0.47	13	14	10	8.0	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-R56M-R-S	0.56	15	16	10	7.5	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-R68M-R-S	0.68	17	18	9.0	7.0	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-1R0M-R-S	1.0	25	27	7.0	6.0	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-1R5M-R-S	1.5	43	46	6.0	5.0	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-2R2M-R-S	2.2	55	58	5.0	4.5	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-3R3M-R-S	3.3	82	87	4.0	3.3	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-4R7M-R-S	4.7	99	105	3.0	2.8	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-6R8M-R-S	6.8	165	175	2.8	2.4	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-8R2M-R-S	8.2	165	180	2.5	2.4	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-100M-R-S	10	265	282	2.2	1.6	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-150M-R-S	15	395	420	1.8	1.4	100KHz/0.1V	SC0420N-SERIES.PDF
SC0420N-220M-R-S	22	517	550	1.0	0.8	100KHz/0.1V	SC0420N-SERIES.PDF

Package：3000pcs/r

|   SC0420N Molded Power Inductor Size

|   SC0420N Molded Power Inductor Application

SC0420N Molded Power Inductor is widely used in consumer electronics, computers, graphics cards, electric vehicles, small household appliances, high-speed hair dryers, audio equipment, vacuum cleaners, etc.
