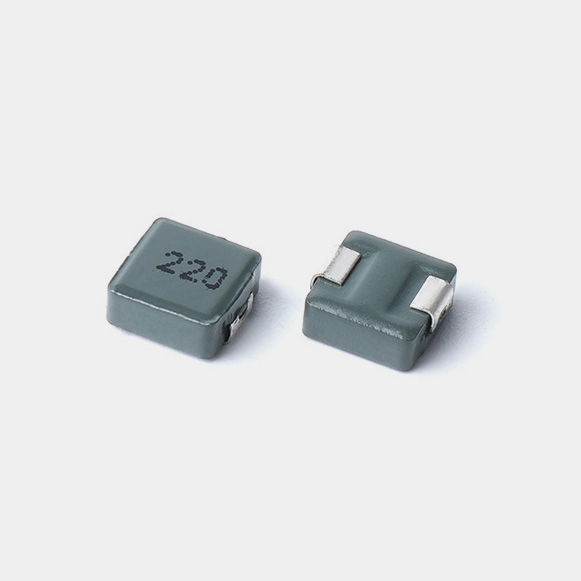

SC0420B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0420B-R22M-R-S	0.22	6.4	7.3	26	14	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-R33M-R-S	0.33	7	8.5	18	10	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-R47M-R-S	0.47	11	14	17	8	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-R56M-R-S	0.56	11	16	14	8	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-R68M-R-S	0.68	16.6	18	13.8	7.5	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-1R0M-R-S	1	22.5	27	13	6.5	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-1R5M-R-S	1.5	37.4	42	12	6	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-2R2M-R-S	2.2	46.4	58	9	4	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-3R3M-R-S	3.3	62	76	5	3.5	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-4R7M-R-S	4.7	95.6	105	4.5	2.8	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-6R8M-R-S	6.8	121.3	175	4	2.5	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-8R2M-R-S	8.2	145	180	3.5	2.4	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-100M-R-S	10	151	243	3.5	2.4	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-150M-R-S	15	382.5	420	3.5	1.6	100KHz/0.25V	SC0420B-SERIES.PDF
SC0420B-220M-R-S	22	401	500	3	1.4	100KHz/0.25V	SC0420B-SERIES.PDF

Package：3000pcs/r

|   SC0420B Molded Power Inductor Size

|   SC0420B Molded Power Inductor Application

SC0420B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
