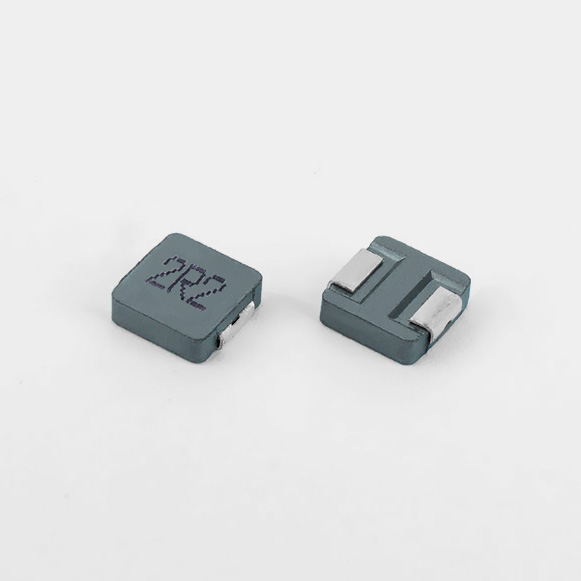

SC0412B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC0412B-R22M-R-S	0.22	10.24	12	22	10	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-R33M-R-S	0.33	12.28	16	18	9	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-R47M-R-S	0.47	14.89	18	13	7.5	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-R68M-R-S	0.68	18.81	23	10	7	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-1R0M-R-S	1.0	29.4	35	9	6	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-1R5M-R-S	1.5	44.6	56	7	5	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-2R2M-R-S	2.2	63.2	75	6	4	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-3R3M-R-S	3.3	82.3	97	4.5	3.5	100KHz/0.25V	SC0412B-SERIES.PDF
SC0412B-4R7M-R-S	4.7	108.4	120	4	3	100KHz/0.25V	SC0412B-SERIES.PDF

Package：4000pcs/r

|   SC0412B Molded Power Inductor Size

|   SC0412B Molded Power Inductor Application

SC0412B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
