PK2W0406 Drum Core Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FREQ.	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
PK2W0406-3R0M-B-S-LF	3	46	1.2	1KHz/1V	PK2W0406-SERIES.PDF
PK2W0406-4R7M-B-S-LF	4.7	75	0.8	100KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-100M-B-S-LF	10	80	0.8	100KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-220K-B-S-LF	22	208	0.2	1KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-470M-B-S-LF	47	254.5	0.2	100KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-101K-B-S-LF	100	1100	0.13	100KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-221K-B-S-LF	220	3500	0.1	100KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-152K-B-S-LF	1500	8500	0.06	1KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-222K-B-S-LF	2200	14000	0.04	1KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-272K-B-S-LF	2700	16000	0.04	1KHz/0.25V	PK2W0406-SERIES.PDF
PK2W0406-332K-B-S-LF	3300	23000	0.03	1KHz/0.25V	PK2W0406-SERIES.PDF

Package：1000pcs/Tray

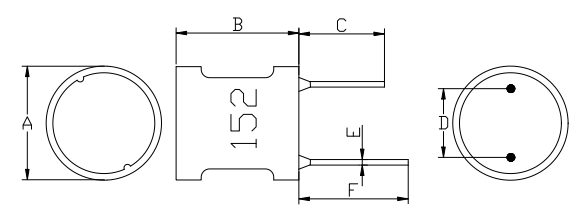

|   PK2W0406 Drum Core Inductor Size

|   PK2W0406 Drum Core Inductor Application

PK2W0406 Drum Core Inductor is widely used in detection equipment, power circuits, and small household appliances.
